Product Summary

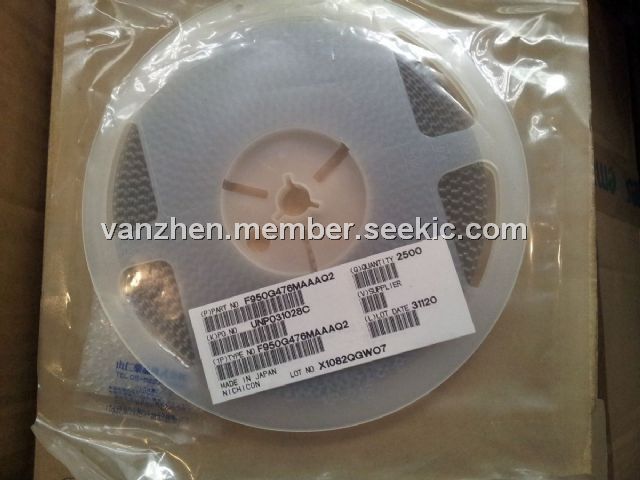

The F950G476MAAAQ2 is a solid tantalum electrolytic capacitor.

Parametrics

F950G476MAAAQ2 specifications: (1)Category Temperature Range: -55 to +125℃ (Rated temperature : 85℃); (2)Capacitance Tolerance: ±20%, ±10% (at 120Hz) (However P Case ±20%); (3)Dissipation Factor(at 120Hz): Refer to next page; (4)ESR(100kHz): Refer to next page; (5)Leakage Current: Refer to next page Provided that After 1 minute’s application of rated voltage, leakage current at 85℃, 10 times or less than 20℃ specified value； After 1 minute’s application of rated voltage, leakage current at 125℃, 12.5 times or less than 20℃ specified value.; (6)Capacitance Change by Temperature: +15% Max. (at +125℃); +10% Max. (at + 85℃); -10% Max. (at -55℃).

Diagrams

F950G476MAAAQ2 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
F950G476MAAAQ2
F950G476MAAAQ2
Nichicon
Tantalum Capacitors - Solid SMD 4volts 47uF 3.2x1.7
Data Sheet
0-1: $0.67
1-500: $0.45
500-1000: $0.35
1000-2500: $0.23
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
F950G107KAAAQ2
F950G107KAAAQ2
Nichicon
Tantalum Capacitors - Solid SMD
Data Sheet
Negotiable
F950G107KAAAQ3
F950G107KAAAQ3
Nichicon
Tantalum Capacitors - Solid SMD 100uF 4V 10%
Data Sheet
0-1: $1.00
1-25: $0.79
25-100: $0.62
100-250: $0.54
F950G107KPAAQ2
F950G107KPAAQ2
Nichicon
Tantalum Capacitors - Solid SMD
Data Sheet
Negotiable
F950G107KSAAQ2
F950G107KSAAQ2
Nichicon
Tantalum Capacitors - Solid SMD
Data Sheet
Negotiable
F950G107KSAAQ3
F950G107KSAAQ3
Nichicon
Tantalum Capacitors - Solid SMD 100uF 4V 10%
Data Sheet
0-750: $0.50
750-1000: $0.40
1000-2000: $0.26
2000-5000: $0.25
F950G107MAAAQ2
F950G107MAAAQ2
Nichicon
Tantalum Capacitors - Solid SMD 4volts 100uF 3.2x1.7
Data Sheet
0-1: $0.77
1-500: $0.51
500-1000: $0.40
1000-2500: $0.27
