REF01AZ/883

Precision Voltage Reference, SOP8, 12V to 40V, REF01AZ/883, 20mA, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $30.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	50.00 / Piece
11 ~ 100 :	40.00 / Piece
101 ~ 1000 :	30.00 / Piece

PartNumber:: REF01AZ/883

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-30

From Other Seller

Part Number:REF01AZ/883
US $30.00 - 50.00
Quantity:

piece

Product Summary

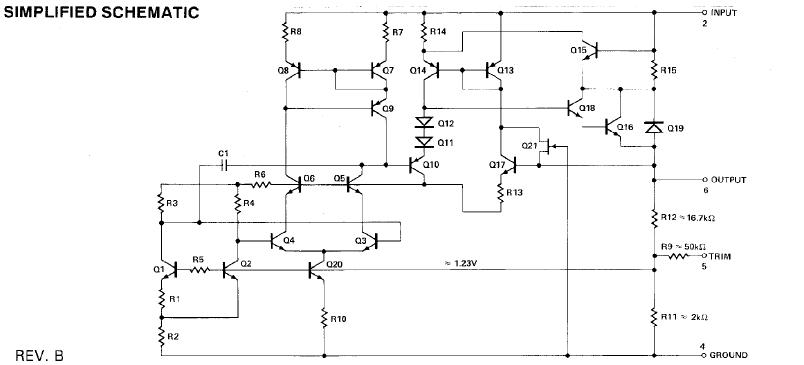

The REF01AZ/883 is a Precision Voltage Reference. The REF01AZ/883 provides a stable +10V output which can be adusted over a +3% range with minimal effect on temperature stability. Single-supply operating over an input voltage range of 12V to 40V, low current drain of 1mA, and excellent temperature stability are achieved with an improved bandgap design. Low cost, low noise and low power make the REF01AZ/883 an excellent choice whenever a stable voltage reference is required. Applications of the REF01AZ/883 include D/A and A/D converters, portable instrumentation, and digital voltmeters. Fully military temperature range devices with screening to MIL-STD-883 are avaliable.

Parametrics

REF01AZ/883 absolute maximum ratings: (1)input voltage: 40V; (2)output short-circuit duration: indefinite; (3)storage temperature range: -65 to 150℃; (4)operating temperature range: -55 to 150℃; (5)junction temperature, Tj: -65 to 150℃; (6)lead temperature (soldering, 60sec): 300℃.

Features

REF01AZ/883 features: (1)10 volt output: ±0.3% max; (2)adjustment range: ±3% min; (3)excellent temperature stability: 8.5ppm/℃ max; (4)low noise: 30μVp-p max; (5)low supply current: 1.4mA max; (6)wide input voltage range: 12 to 40V; (7)high load-driving capability: 20mA; (8)no external components; (9)short-circuit proof; (10)MIL-STD-883 screening available; (11)available in Die Form.
