PIC16F876-20/SP

8-Bit CMOS Flash Microcontroller, 25 mA, 0.3 V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: PIC16F876-20/SP

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-17

From Other Seller

Part Number:PIC16F876-20/SP
US $0.30 - 0.50
8-bit Microcontrollers - MCU 14KB 368 RAM 22 I/O

US $3.75 - 4.05 / Piece
(0) Remove
PIC16F876-20/SP

US $3.80 - 4.80 / Piece
(0) Remove
Quantity:

piece

Product Summary

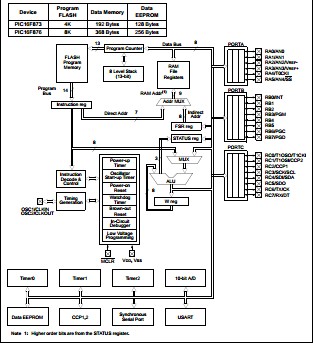

The PIC16F876-20/SP is a 28/40-pin 8-Bit CMOS Flash Microcontroller. It has a 13-bit program counter capable of addressing an 8K x 14 program memory space. The PIC16F876-20/SP has 8K x 14 words of FLASH program memory. Accessing a location above the physically implemented address will cause a wraparound. The RESET vector is at 0000h and the interrupt vector is at 0004h.

Parametrics

PIC16F876-20/SP absolute maximum ratings: (1)Ambient temperature under: -55℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS: -0.3 V to (VDD + 0.3 V); (4)Voltage on VDD with respect to VSS: -0.3 to +7.5 V; (5)Voltage on MCLR with respect to VSS: 0 to +14 V; (6)Voltage on RA4 with respect to: 0 to +8.5 V; (7)Total power dissipation: 1.0 W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current: ±20 mA; (11)Output clamp current:±20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA.

Features

PIC16F876-20/SP features: (1)High performance RISC CPU; (2)Only 35 single word instructions to learn; (3)All single cycle instructions except for program branches which are two cycle; (4)Pinout compatible to the PIC16C73B/74B/76/77; (5)Interrupt capability (up to 14 sources); (6)Eight level deep hardware stack; (7)Direct, indirect and relative addressing modes; (8)Power-on Reset (POR); (9)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST) ; (10)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (11)Programmable code protection; (12)Power saving SLEEP mode; (13)Selectable oscillator options; (14)Low power, high speed CMOS FLASH/EEPROM technology; (15)Fully static design.
