PCA9515ADP

PCA9515ADP, CMOS integrated circuit, 7 V, 100 mW, MSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	3.00 / Piece
501 ~ 1000 :	2.00 / Piece
1001 ~ 3000 :	1.00 / Piece

PartNumber:: PCA9515ADP

Brand:: NXP - NXP | Pack: MSOP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-02

From Other Seller

Part Number:PCA9515ADP
US $1.00 - 3.00
Quantity:

piece

Product Summary

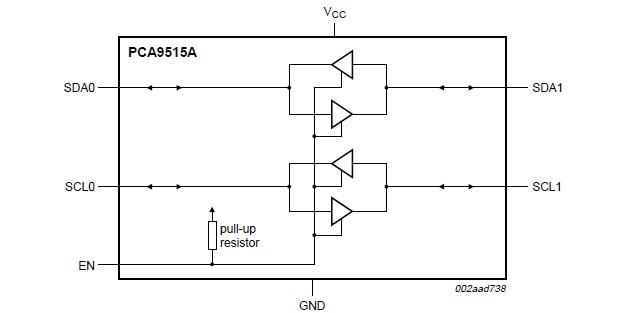

The PCA9515ADP is a CMOS integrated circuit intended for application in I2C-bus and SMBus systems. While retaining all the operating modes and features of the I2C-bus system, the PCA9515ADP permits extension of the I2C-bus by buffering both the data (SDA) and the clock (SCL) lines, thus enabling two buses of 400 pF. The I2C-bus capacitance limit of 400 pF restricts the number of devices and bus length. Using the PCA9515ADP enables the system designer to isolate two halves of a bus, thus more devices or longer length can be accommodated.

Parametrics

PCA9515ADP absolute maximum ratings: (1)VCC supply voltage: -0.5 to +7 V; (2)Vbus voltage on I2C-bus, SCL or SDA: -0.5 to +7 V; (3)I DC current any pin: 50 mA; (4)Ptot total power dissipation: 100 mW; (5)Tstg storage temperature: -55 to +125 °C; (6)Tamb ambient temperature operating in free air: -40 to +85 °C.

Features

PCA9515ADP features: (1)2-channel, bidirectional buffer; (2)I2C-bus and SMBus compatible; (3)Active HIGH repeater enable input; (4)Open-draiinput/outputs; (5)Lock-up free operation; (6)Supports arbitratioand clock stretching across the repeater; (7)Accommodates Standard-mode and Fast-mode I2C-bus devices and multiple masters; (8)Powered-off high-impedance I2C-bus pins; (9)Operating supply voltage range of 2.3 V to 3.6 V; (10)5.5 V tolerant I2C-bus and enable pins.
