Product Summary
The PCA82C251T is a can transceiver for 24V systems. The PCA82C251T is the interface between the CANprotocol controller and the physical bus. The PCA82C251T is primarily intended for applications (up to 1 Mbaud) in trucks and buses. provides differential transmit capability to the bus and differential receive capability to the CAN controller.
Parametrics
PCA82C251T ratings: (1) HIGH-level output voltage (pin 4) VOH: 0.8Vcc (I4=100μA) ; (2) LOW-level output voltage
(pin 4) VOL: 0 to 0.2Vcc(I4=1mA) , 0 to 1.5V (I4=10mA) ; (3) CANH, CANL input resistance Ri: 5 to 25kΩ; (4) differential input resistance Rdiff: 20 to 100kΩ.
Features
PCA82C251T features: (1) Fully compatible with the ISO 11898-24V standard; (2) Slope control to reduce RFI; (3) Thermally protected; (4) Short-circuit proof to battery and ground in 24V; (5) powered systems; (6) Low-current standby mode; (7) An unpowered node does not disturb the bus lines; (8) At least 110 nodes can be connected; (9) High speed (up to 1 Mbaud) ; (10) High immunity against electromagnetic interference.

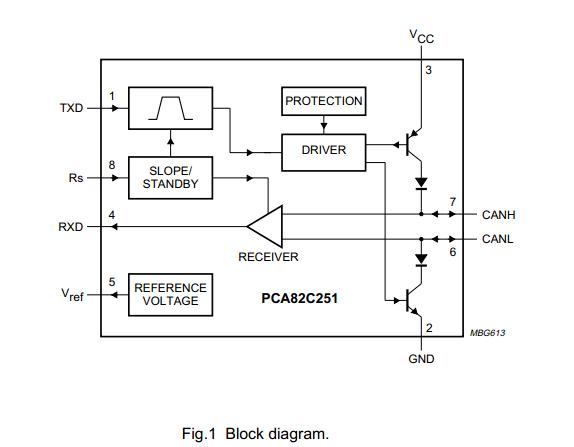

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCA82C251T/YM,118 |
NXP Semiconductors |
Network Controller & Processor ICs CAN Xceive 275uA 5V |
Data Sheet |
|
|
||||||||||||
