PCA82C251T

CAN transceiver, High speed, 1 Mbaud, 24 V, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: PCA82C251T

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-18

From Other Seller

Part Number:PCA82C251T
US $0.30 - 0.50
Quantity:

piece

Product Summary

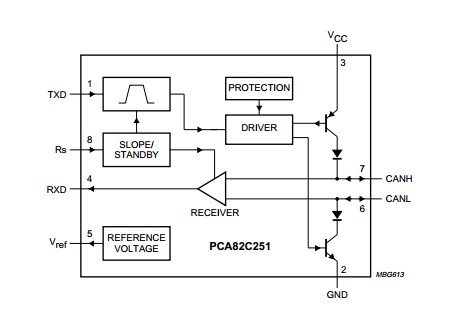

The PCA82C251T is the interface between the CAN protocol controller and the physical bus. It is primarily intended for applications (up to 1 Mbaud) in trucks and buses. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.

Parametrics

PCA82C251T absolute maximum ratings: (1)supply voltage: -0.3 to +7.0 V; (2)DC voltage at pins 1, 4, 5 and 8: -0.3 to VCC + 0.3 V; (3)transient voltage on pins 6 and 7: -200 +200 V; (4)storage temperature: -55 +150℃; (5)ambient temperature: -40 +125℃; (6)virtual junction temperature note 3: -40 +150℃.

Features

PCA82C251T features: (1)Slope control to reduce RFI; (2)Thermally protected; (3)Short-circuit proof to battery and ground in 24 V powered systems; (4)Low-current standby mode; (5)An unpowered node does not disturb the bus lines; (6)At least 110 nodes can be connected; (7)High speed (up to 1 Mbaud); (8)High immunity against electromagnetic interference.
