Product Summary

The OPA2333AIDGKR is a CMOS operational amplifier which uses a proprietary auto-calibration technique to simultaneously provide very low offset voltage (10μV max) and near-zero drift over time and temperature. These miniature, high-precision, low quiescent current amplifiers offer high-impedance inputs that have a common-mode range 100mV beyond the rails and rail-to-rail output that swings within 50mV of the rails. Single or dual supplies as low as +1.8V (±0.9V) and up to +5.5V (±2.75V) may be used. They are optimized for low-voltage, single-supply operation. Applications include transducer applications, temperature measurements, electronic scales, medical instrumentation, battery-powered instruments and handheld test equipment.

Parametrics

OPA2333AIDGKR absolute maximum ratings: (1)Supply Voltage: +7 V; (2)Signal Input Terminals: -0.3 to (V+) + 0.3 V; (3)Signal Input Terminals: ±10 mA; (4)Operating Temperature: -40 to +150℃; (5)Storage Temperature: -65 to +150℃; (6)Junction Temperature: +150℃; (7)ESD Ratings-Human Body Model (HBM): 4000 V; (8)ESD Ratings-Charged Device Model (CDM): 1000 V; (9)ESD Ratings-achine Model (MM): 400 V.

Features

OPA2333AIDGKR features: (1)low offset voltage: 10μv (max); (2)zero drift: 0.05μv/℃ (max); (3)0.01hz to 10hz noise: 1.1μvpp; (4)quiescent current: 17μA; (5)single-supply operation; (6)supply voltage: 1.8v to 5.5v; (7)rail-to-rail input/output; (8)microsize packages: sc70 and sot23.

Diagrams

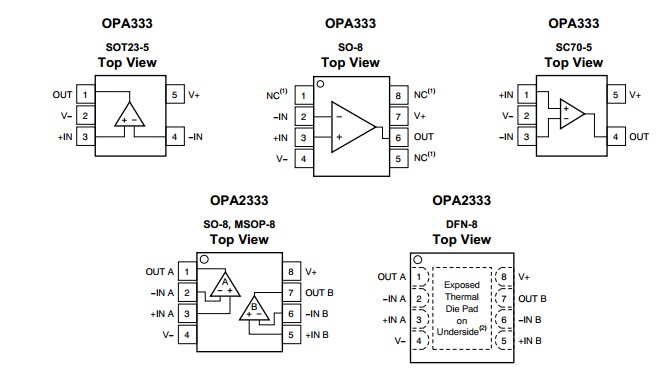

OPA2333AIDGKR PIN CONFIGURATIONS
