Product Summary

The MX29GL640ELT2I-90G is a 128-mega bit Flash memory organized as 16M bytes of 8 bits or 8M words of 16 bits. MXIC’s Flash memories offer the most cost-effective and reliable read/write non-volatile random access memory. The MX29GL640ELT2I-90G is packaged in 56-pin TSOP. It is designed to be reprogrammed and erased in system or in standard EPROM programmers.

Parametrics

MX29GL640ELT2I-90G absolute maximum ratings: (1)Surrounding Temperature with Bias: -65℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage Range, Vcc: -0.5 V to +4.0 V; RESET#, A9, ACC and OE#: -0.5 V to +10.5 V; The other pins: -0.5 V to Vcc +0.5 V; (4)Output Short Circuit Current (less than one second): 200 mA.

Features

MX29GL640ELT2I-90G features: (1)Single Power Supply Operation, 2.7 to 3.6 volt for read, erase, and program operations; (2)Configuration, 16,777,216 x 8 / 8,388,608 x 16 switchable; (3)Sector structure, 64KB(32KW) x 256; (4)Latch-up protected to 250mA from -1V to VCC + 1V; (5)Low VCC write inhibit is equal to or less than 1.5V; (6)Compatible with JEDEC standard, Pin-out and software compatible to single power supply Flash.

Diagrams

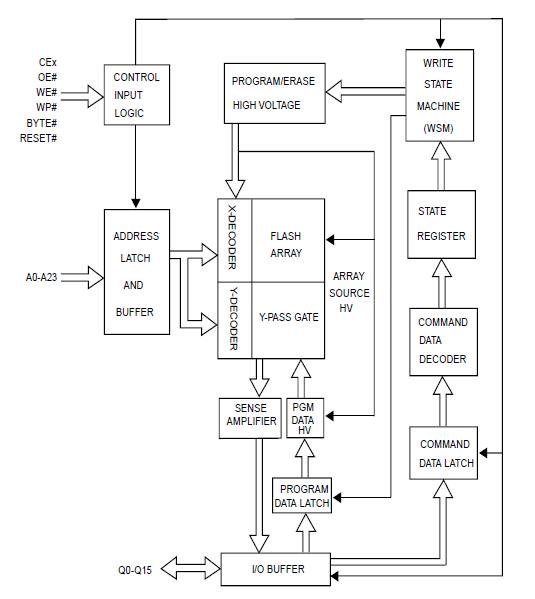

MX29GL640ELT2I-90G block diagram
