MAX810TEUR

MAX810TEUR, 3-Pin Microprocessor Reset Circuit, SOT, -0.3V to +6.0V, 320mW, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1000 ~ 10000 :	0.45 / Piece
10000 ~ 100000 :	0.40 / Piece

PartNumber:: MAX810TEUR

Brand:: Maxim Integrated Products - Maxim | Pack: SOT | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-26

From Other Seller

Part Number:MAX810TEUR
US $0.40 - 0.50
Quantity:

piece

Product Summary

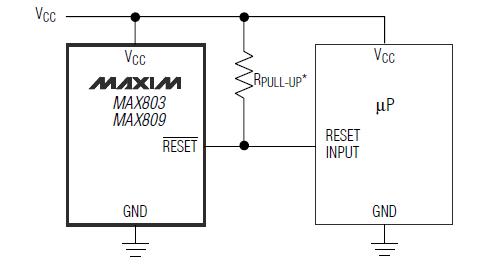

The MAX810TEUR is a microprocessor (μP) supervisory circuit used to monitor the power supplies in μP and digital systems. The device provides excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V, or +2.5V-powered circuits. The applications of the MAX810TEUR include Computers, Controllers, Intelligent Instruments, Critical μP and μC Power Monitoring, Portable/Battery-Powered Equipment, Automotive.

Parametrics

MAX810TEUR absolute maximum ratings: (1)Terminal Voltage (with respect to GND), VCC: -0.3V to +6.0V; (2)RESET, RESET (push-pull): -0.3V to (VCC + 0.3V); (3)RESET (open drain): -0.3V to +6.0V; (4)Input Current, VCC: 20mA; (5)Output Current, RESET, RESET: 20mA; (6)Rate of Rise, VCC: 100V/μs; (7)Continuous Power Dissipation (TA = +70℃); (8)3-Pin SC70 (derate 2.17mW/℃ above +70℃): 174mW; (9)3-Pin SOT23 (derate 4mW/℃ above +70℃): 320mW; (10)Operating Temperature Range: -40℃ to +105℃; (11)Storage Temperature Range: -65℃ to +150℃; (12)Lead Temperature (soldering, 10s): +300℃.

Features

MAX810TEUR features: (1)Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power-Supply Voltages; (2)Fully Specified Over Temperature; (3)vailable in Three Output Configurations, Open-Drain RESET Output (MAX803); Push-Pull RESET Output (MAX809); Push-Pull RESET Output (MAX810); (4)140ms min Power-On Reset Pulse Width; (5)12μA Supply Current; (6)Guaranteed Reset Valid to VCC = +1V; (7)Power Supply Transient Immunity; (8)No External Components; (9)3-Pin SC70 and SOT23 Packages.
