MAX531BCPD

MAX531BCPD, Low-Power Serial 12-Bit DAC, DIP, -0.3V to +6V, -20mA to +20mA, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1000 ~ 10000 :	0.45 / Piece
10000 ~ 1000000 :	0.40 / Piece

PartNumber:: MAX531BCPD

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-26

From Other Seller

Part Number:MAX531BCPD
US $0.40 - 0.50
Quantity:

piece

Product Summary

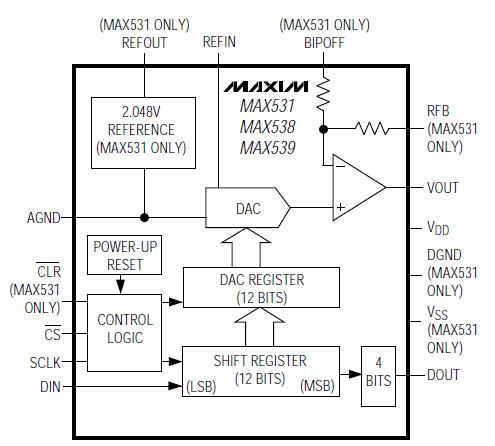

The MAX531BCPD is a low-power, voltage-output, 12-bit digital-to-analog converter (DAC) specified for single +5V power-supply operation. The MAX531BCPD can also be operated with ±5V supplies. The device (with internal reference) draws only 260μA. The MAX531BCPD comes in 14-pin DIP and SO packages. The applications of the MAX531BCPD include Battery-Powered Test Instruments, Digital Offset and Gain Adjustment, Battery-Operated/Remote Industrial Controls, Machine and Motion Control Devices, Cellular Telephones.

Parametrics

MAX531BCPD absolute maximum ratings: (1)VDD to DGND and VDD to AGND: -0.3V, +6V; (2)VSS to DGND and VSS to AGND: -6V, +0.3V; (3)VDD to VSS: -0.3V, +12V; (4)AGND to DGND: -0.3V, +0.3V; (5)Digital Input Voltage to DGND: -0.3V, (VDD + 0.3V); (6)REFIN: (VSS - 0.3V), (VDD + 0.3V); (7)REFOUT to AGND: -0.3V, (VDD + 0.3V); (8)RFB: (VSS - 0.3V), (VDD + 0.3V); (9)BIPOFF: (VSS - 0.3V), (VDD + 0.3V); (10)VOUT: VSS, VDD; (11)Continuous Current, Any Pin: -20mA, +20mA.

Features

MAX531BCPD features: (1)Operate from Single +5V Supply; (2)Buffered Voltage Output; (3)Internal 2.048V Reference (MAX531); (4)140μA Supply Current (MAX538/MAX539); (5)INL = ±1/2LSB (max); (6)Guaranteed Monotonic over Temperature; (7)Flexible Output Ranges: 0V to VDD (MAX531/MAX539); VSS to VDD (MAX531); 0V to 2.6V (MAX531/MAX538); (8)8-Pin SO/DIP (MAX538/MAX539); (9)Power-On Reset; (10)Serial Data Output for Daisy-Chaining.
