MAX13487EESA

MAX13487EESA, SOIC, half-duplex, RS-485-/RS-422-compatible transceiver, -8V to +13V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: MAX13487EESA

Brand:: Maxim Integrated Products - Maxim | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-26

From Other Seller

Part Number:MAX13487EESA
US $0.30 - 0.50
Quantity:

piece

Product Summary

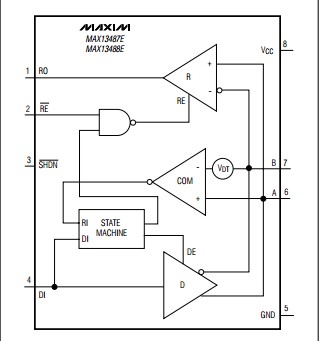

The MAX13487EESA is a half-duplex, ESD-protected RS-485/RS-422-compatible transceiver which features one driver and one receiver. The MAX13487EESA includes a hot-swap capability to eliminate false transitions on the bus during power-up or live insertion. The MAX13487EESA features Maxim proprietary AutoDirection control. This architecture makes the devices ideal for applications, such as isolated RS-485 ports, where the driver input is used in conjunction with the driver-enable signal to drive the differential bus. The MAX13487EESA features reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free transmission up to 500kbps. The MAX13487EESA driver slew rate is not limited, allowing transmit speeds up to 16Mbps. The MAX13487EESA features a 1/4-unit load receiver input impedance, allowing up to 128 transceivers on the bus. These devices are intended for halfduplex communications. The MAX13487EESA can be applied in isolated RS-485 interfaces, utility meters, industrial controls, industrial motor drives and automated hvac systems.

Parametrics

MAX13487EESA absolute maximum ratings: (1)Supply Voltage VCC: +6V; (2)SHDN, RE, DI: -0.3V to +6; (3)A, B: -8V to +13V; (4)Short-Circuit Duration (RO, A, B) to GND: Continuous; (5)Operating Temperature Range: -40°C to +85°C; (6)Junction Temperature: +150°C; (7)Storage Temperature Range: -65°C to +150°C; (8)Lead Temperature (soldering 10s): +300°C.

Features

MAX13487EESA features; (1)+5V Operation; (2)AutoDirection Enables Driver Automatically on Transmission; (3)Hot-Swappable for Telecom Applications Enhanced Slew-Rate Limiting Facilitates Error Free Data Transmission (MAX13487E); (4)High-Speed Version Allows for Transmission Speeds Up to 16Mbps; (5)Extended ESD Protection for RS-485 I/O Pins ±15kV Human Body Model; (6)1/4-Unit Load, Allowing Up to 128 Transceivers on the Bus; (7)8-Pin SO Package.
