Product Summary
The M25P128 is a 128-Mbit (16 Mbit × 8) serial flash memory, with advanced write
protection mechanisms and accessed by a high speed SPI-compatible bus, which allows
clock frequency operation up to 54 MHz(1).
The memory can be programmed 1 to 256 Bytes at a time, using the page program
instruction.
Features
128-Mbit flash memory
?? 2.7 to 3.6 V single supply voltage
?? SPI bus compatible serial interface
?? 54 MHz clock rate (maximum) for 65 nm
devices
?? VPP = 9 V for fast program/erase mode
(optional)
?? Page program (up to 256 Bytes):
– in 0.5 ms (typical) for 65 nm devices
– in 0.4 ms (typical with VPP = 9 V) for 65 nm
devices
?? Sector erase (2 Mbit)
?? Bulk erase (128 Mbit)
?? Electronic signature
– JEDEC standard two-byte signature
(2018h)

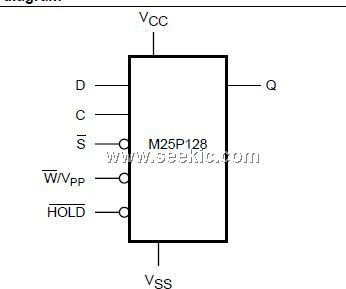

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M25P128-VMF6TPB |
|
IC FLASH 128MBIT 65NM 3V SO16 |
Data Sheet |
Negotiable |
|
||||||||||||
