LTC3406BES5

LTC3406BES5, synchronous buck regulator, 6V, 800mA, 1.5MHz, SOT

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: LTC3406BES5

Brand:: Linear Technology - Linear | Pack: SOT | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-31

From Other Seller

Part Number:LTC3406BES5
US $0.30 - 0.50
LTC3406BES5#TRPBF

US $1.15 - 2.62 / Piece
(0) Remove
LTC3406BES5-1.8#TRPBF

US $1.15 - 2.65 / Piece
(0) Remove
Quantity:

piece

Product Summary

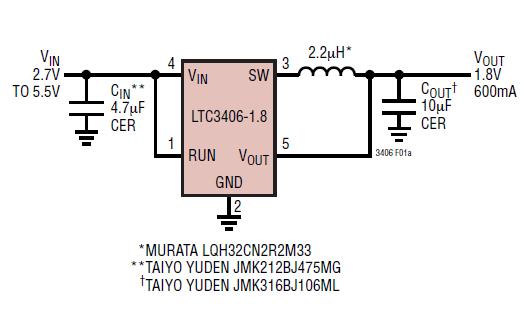

The LTC3406BES5 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is available in an adjustable version and fixed output voltages of 1.5V and 1.8V. Supply current during operation is only 20μA and drops to ≤ 1μA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3406BES5 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. The applications of the LTC3406BES5 include Cellular Telephones, Personal Information Appliances, Wireless and DSL Modems, Digital Still Cameras, MP3 Players, Portable Instruments.

Parametrics

LTC3406BES5 absolute maximum ratings: (1)Input Supply Voltage: -0.3V to 6V; (2)RUN, VFB Voltages: -0.3V to VIN; (3)SW Voltage: -0.3V to (VIN + 0.3V); (4)P-Channel Switch Source Current (DC): 800mA; (5)N-Channel Switch Sink Current (DC): 800mA; (6)Peak SW Sink and Source Current: 1.3A; (7)Operating Temperature Range: -40℃ to 85℃; (8)Junction Temperature: 125℃; (9)Storage Temperature Range: -65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC3406BES5 features: (1)High Efficiency: Up to 96%; (2)Very Low Quiescent Current: Only 20μA During Operation; (3)600mA Output Current; (4)2.5V to 5.5V Input Voltage Range; (5)1.5MHz Constant Frequency Operation; (6)No Schottky Diode Required; (7)Low Dropout Operation: 100% Duty Cycle; (8)0.6V Reference Allows Low Output Voltages; (9)Shutdown Mode Draws ≤ 1μA Supply Current; (10)Current Mode Operation for Excellent Line and Load Transient Response; (11)Overtemperature Protected; (12)Low Profile (1mm) ThinSOT Package.
