Product Summary

The LM94022BIMG is a Multi-Gain Analog Temperature Sensor. For example, it is well suited to source the input of a sample-and-hold analog-to-digital converter with its transient load requirements. The applications of the LM94022BIMG are Cell phones, Wireless Transceivers, Battery Management, Automotive, Disk Drives, Games, Appliances.

Parametrics

LM94022BIMG absolute maximum ratings: (1)Supply Voltage: -0.2V to +6.0V; (2)Voltage at Output Pin: -0.2V to (VDD + 0.5V); (3)Output Current: ±7 mA; (4)Voltage at GS0 and GS1 Input Pins: -0.2V to +6.0V; (5)Input Current at any pin: 5 mA; (6)Storage Temperature: -65°C to +150°C; (7)Maximum Junction Temperature(TJMAX): +150°C.

Features

LM94022BIMG features: (1)Low 1.5V operation; (2)Push-pull output with 50uA source current capability; (3)Four selectable gains; (4)Very accurate over wide temperature range of -50°C to 150°C; (5)Low quiescent current; (6)Output is short-circuit protected; (7)Extremely small SC70 package; (8)Footprint compatible with the industry-standard LM20 temperature sensor.

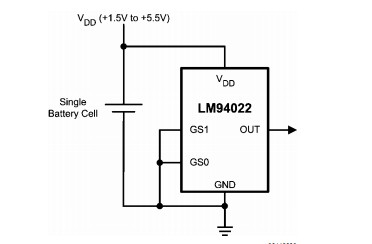

Diagrams

LM94022BIMG plackage dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM94022BIMG
LM94022BIMG
National Semiconductor (TI)
Board Mount Temperature Sensors
Data Sheet
0-1000: $0.29
1000-5000: $0.28
5000-10000: $0.27
LM94022BIMG/NOPB
LM94022BIMG/NOPB
National Semiconductor (TI)
Board Mount Temperature Sensors 1.5V, SC70 MULT-GAIN ANALOG TEMP SENSOR
Data Sheet
0-1: $0.73
1-25: $0.59
25-100: $0.51
100-250: $0.45
LM94022BIMGX/NOPB
LM94022BIMGX/NOPB
National Semiconductor (TI)
Board Mount Temperature Sensors
Data Sheet
0-1: $0.73
1-25: $0.59
25-100: $0.51
100-250: $0.45
LM94022BIMGX
LM94022BIMGX
National Semiconductor (TI)
Board Mount Temperature Sensors
Data Sheet
0-3000: $0.29
3000-6000: $0.28
6000-12000: $0.27
