Product Summary

The LM6134AIM is a quad low power 10 MHz rail-to-rail I/O operational amplifier, which provides new levels of speed vs power performance in applications where low voltage supplies or power limitations previously made compromise necessary. With only 360 μA/amp supply current, the 10 MHz gain-bandwidth of this device supports new portable applications where higher power devices unacceptably drain battery life. The LM6134AIM can be driven by voltages that exceed both power supply rails, thus eliminating concerns over exceeding the common-mode voltage range. The rail-to-rail output swing capability provides the maximum possible dynamic range at the output. This is particularly important when operating on low supply voltages. TheLM6134AIM can also drive large capacitive loads without oscillating. Operating on supplies from 2.7V to over 24V, the LM6134AIM is excellent for a very wide range of applications, from battery operated systems with large bandwidth requirements to high speed instrumentation.

Parametrics

LM6134AIM absolute maximum ratings: (1)ESD Tolerance: 2500V; (2)Differential Input Voltage: 15V; (3)Voltage at Input/Output Pin: (V+)+0.3V, (V-)-0.3V; (4)Supply Voltage (V+–V-): 35V; (5)Current at Input Pin: ±10 mA; (6)Current at Output Pin: ±25 mA; (7)Current at Power Supply Pin: 50 mA; (8)Lead Temp. (soldering, 10 sec.): 260℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Junction Temperature: 150℃.

Features

LM6134AIM features: (1)Rail-to-Rail input CMVR -0.25V to 5.25V; (2)Rail-to-Rail output swing 0.01V to 4.99V; (3)High gain-bandwidth, 10 MHz at 20 kHz; (4)Slew rate 12 V/μs; (5)Low supply current 360 μA/Amp; (6)Wide supply range 2.7V to over 24V; (7)CMRR 100 dB; (8)Gain 100 dB with RL = 10k; (9)PSRR 82 dB.

Diagrams

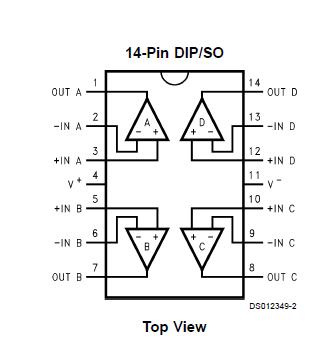

LM6134AIM block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM6134AIM
LM6134AIM

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-220: $1.91
220-275: $1.73
275-550: $1.55
550-1045: $1.31
LM6134AIM/NOPB
LM6134AIM/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps 7Mhz,350Ua Supl.Cur Quad Amp

Data Sheet

0-1: $2.62
1-25: $2.11
25-100: $1.91
100-250: $1.73
LM6134AIMX/NOPB
LM6134AIMX/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-1: $2.34
1-25: $2.11
25-100: $1.91
100-250: $1.73
LM6134AIMX
LM6134AIMX

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-2500: $1.24
2500-5000: $1.19
