LM2736YMK

LM2736YMK, SOT23-6, DC/DC converter, 750mA, -0.5 to 22V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: LM2736YMK

Brand:: Texas Instruments - TI | Pack: SOT | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-18

From Other Seller

Part Number:LM2736YMK
US $0.30 - 0.50
Quantity:

piece

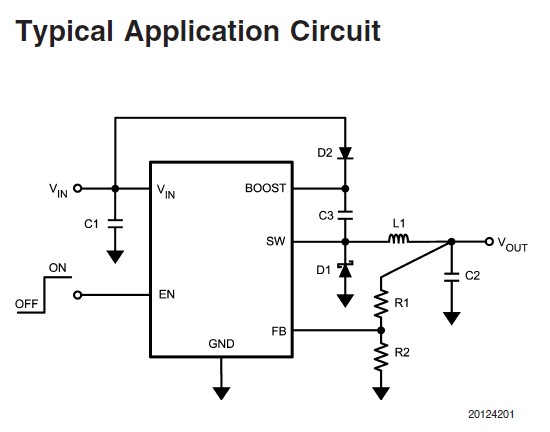

Product Summary

The LM2736YMK regulator is a monolithic, high frequency, PWM step-down DC/DC converter in a 6-pin Thin SOT23 package. It provides all the active functions to provide local DC/DC conversion with fast transient response and accurate regulation in the smallest possible PCB area. With a minimum of external components and online design support through WEBENCH, the LM2736YMK is easy to use. The ability to drive 750mA loads with an internal 350mΩ NMOS switch using state-of-the-art 0.5μm BiCMOS technology results in the best power density available. The world class control circuitry allows for on-times as low as 13ns, thus supporting exceptionally high frequency conversion over the entire 3V to 18V input operating range down to the minimum output voltage of 1.25V.

Parametrics

LM2736YMK absolute maximum ratings: (1)VIN -0.5V to 22V; (2)SW Voltage -0.5V to 22V; (3)Boost Voltage -0.5V to 28V; (4)Boost to SW Voltage -0.5V to 6.0V; (5)FB Voltage -0.5V to 3.0V; (6)EN Voltage -0.5V to (VIN + 0.3V); (7)Junction Temperature 150℃; (8)ESD Susceptibility (Note 2) 2kV; (9)Storage Temp. Range -65℃ to 150℃; (10)Infrared/Convection Reflow (15sec) 220℃; (11)Wave Soldering Lead Temp. (10sec) 260℃.

Features

LM2736YMK features: (1)ThiSOT23-6 package; (2)3.0V to 18V input voltage range; (3)1.25V to 16V output voltage range; (4)750mA output current; (5)550kHz (LM2736Y) and 1.6MHz (LM2736X); (6)switching frequencies; (7)350mΩ NMOS switch; (8)30nA shutdowcurrent; (9)1.25V, 2% internal voltage reference; (10)Internal soft-start; (11)Current-Mode, PWM operation; (12)WEBENCH online desigtool.
