DSPIC30F3013-30I/SO

Product Summary

The DSPIC30F3013-30I/SO is a High-Performance Digital Signal Controller. The core has a 24-bit instruction word. The Program counter (PC) is 23-bits wide with the Least Significant (LS) bit always clear. The Most Significant (MS) bit is ignored during normal program execution, except for certain specialized instructions. Thus, the PC can address up to 4M instruction words of user program space. An instruction pre-fetch mechanism helps maintain throughput. Program loop constructs, free from loop count management overhead, are supported using the DO and REPEAT instructions, both of which are interruptible at any point.

Parametrics

DSPIC30F3013-30I/SO absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS: -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +5.5V; (5)Voltage on MCLR with respect to VSS: 0V to +13.25V; (6)Maximum current out of VSS pin : 300 mA; (7)Maximum current into VDD pin: 250 mA; (8)Input clamp current: ±20 mA; (9)Output clamp current: ±20 mA; (10)Maximum output current sunk by any I/O pin: 25 mA; (11)Maximum output current sourced by any I/O pin: 25 mA; (12)Maximum current sunk by all ports: 200 mA; (13)Maximum current sourced by all ports: 200 mA

Features

DSPIC30F3013-30I/SO features: (1)Modified Harvard architecture; (2)C compiler optimized instruction set architecture; (3)Flexible addressing modes; (4)84 base instructions; (5)24-bit wide instructions, 16-bit wide data path; (6)Up to 24 Kbytes on-chip Flash program space; (7)Up to 2 Kbytes of on-chip data RAM; (8)Up to 1 Kbytes of non-volatile data EEPROM ; (9)16 x 16-bit working register array; (10)Dual data fetch; (11)Modulo and Bit-reversed modes; (12)Two 40-bit wide accumulators with optional saturation logic; (13)High current sink/source I/O pins: 25 mA/25 mA; (14)Three 16-bit timers/counters; optionally pair up 16-bit timers into 32-bit timer modules; (15)16-bit Capture input functions; (16)Programmable Low Voltage Detection (PLVD); (17)Programmable Brown-out Detection and Reset; (18)Programmable code protectiongeneration.

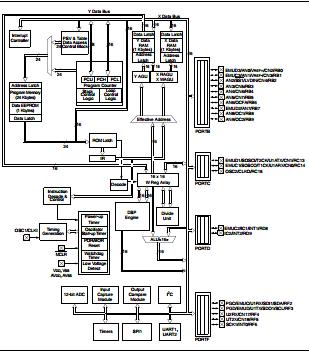

Diagrams
