Product Summary

The DS90C385AMT is a 3.3V Programmable LVDS Transmitter 24-Bit Flat Panel Display Link-87.5 MHz. The DS90C385AMT has additional features and improvements making it an ideal replacement for DS90C383, DS90C383A and DS90C385 family of LVDS Transmitters. The DS90C385AMT is an ideal means to solve EMI and cable size problems associated with wide, high-speed TTL interfaces with added Spread Spectrum Clocking support.

Parametrics

DS90C385AMT absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +4V; (2)CMOS/TTL Input Voltage: -0.5V to (VCC + 0.3V); (3)LVDS Driver Output Voltage: -0.3V to (VCC + 0.3V); (4)LVDS Output Short Circuit Duration: Continuous; (5)Junction Temperature: +150℃; (6)Storage Temperature: -65 to +150℃; (7)Lead Temperature (Soldering, 4 sec): +260℃; (8)Maximum Package Power Dissipation Capacity @ 25℃ MTD56 (TSSOP) Package: 1.63 W.

Features

DS90C385AMT features: (1)Pin-to-pin compatible to DS90C383, DS90C383A and DS90C385 ; (2)No special start-up sequence required between clock/data and /PD pins. Input signals (clock and data) can be applied either before or after the device is powered.; (3)Support Spread Spectrum Clocking up to 100kHz frequency modulation & deviations of ±2.5% center spread or -5% down spread.; (4)"Input Clock Detection” feature will pull all LVDS pairs to logic low when input clock is missing and when /PD pin is logic high.; (5)18 to 87.5 MHz shift clock support; (6)Tx power consumption＜147 mW (typ) @ 87.5 MHz Grayscale; (7)Tx Power-down mode＜60 μW (typ); (8)Supports VGA, SVGA, XGA, SXGA(dual pixel), SXGA+(dual pixel), UXGA(dual pixel).; (9)Narrow bus reduces cable size and cost; (10)Up to 2.45 Gbps throughput; (11)Up to 306.25Megabytes/sec bandwidth; (12)345 mV (typ) swing LVDS devices for low EMI; (13)PLL requires no external components; (14)Compliant to TIA/EIA-644 LVDS standard; (15)Low profile 56-lead TSSOP package.

Diagrams

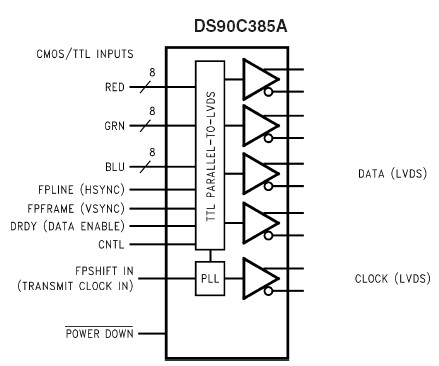

DS90C385AMT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DS90C385AMT
DS90C385AMT
National Semiconductor (TI)
LVDS Interface IC
Data Sheet
0-170: $2.51
170-272: $2.28
272-510: $1.99
510-1020: $1.60
DS90C385AMT/NOPB
DS90C385AMT/NOPB
National Semiconductor (TI)
LVDS Interface IC LVDS TRANSMITTER FLAT PANEL DISPLAY
Data Sheet
0-1: $2.56
1-10: $2.30
10-25: $2.05
25-50: $1.93
DS90C385AMTX/NOPB
DS90C385AMTX/NOPB
National Semiconductor (TI)
LVDS Interface IC LVDS TRANSMITTER FLAT PANEL DISPLAY
Data Sheet
0-1: $2.56
1-10: $2.30
10-25: $2.05
25-50: $1.93
DS90C385AMTX
DS90C385AMTX
National Semiconductor (TI)
LVDS Interface IC
Data Sheet
0-1000: $1.28
