Product Summary

The ECHU1C183JB5 is a Film Chip Capacitor. Applications include: Time-constant, Filtering, Oscillation and resonance.

Parametrics

ECHU1C183JB5 specifications: (1)Category temp. range: -55 ℃ to + 125 ℃; (2)Rated voltage: 10 VDC, 16 VDC, 50 VDC; (3)Capacitance range: 0.0001 μF to 0.33 μF (E12); (4)Capacitance tolerance: ±2 %(G), ±5 %(J); (5)Withstand voltage: Between terminals: Rated volt. (VDC)×150%, 60s; (6)Dissipation factor: 0.6 % or less(20 ℃, 1 kHz); (7)Insulation resistance: 10 VDC:3000 MΩ or more (20 ℃, 10 VDC, 60 s); 16 VDC:3000 MΩ or more (20 ℃, 10 VDC, 60 s); 50 VDC: 3000 MΩ or more (20 ℃, 50 VDC, 60 s); (8)Soldering conditions: Reflow soldering: 260 ℃ max. and 30s max. at more than 230 ℃ (Temp. at cap. surface).

Features

ECHU1C183JB5 features: (1)Small in size (minimum size 1.6 mm × 0.8 mm); (2)85℃, 85 %RH, W.V.× 1.0, 500 hours; (3)Applicable for reflow soldering.

Diagrams

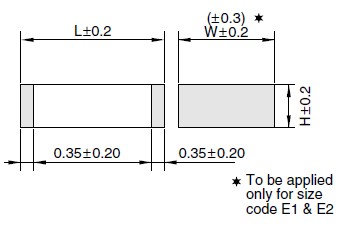

ECHU1C183JB5 dimensions

ECHU1C333JB5
ECHU1C333JB5

Other


Data Sheet

Negotiable
