Product Summary

The DS1340 is a real-time clock (RTC)/calendar that is
pin compatible and functionally equivalent to the ST
M41T00, including the software clock calibration. The
device additionally provides trickle-charge capability
on the VBACKUP pin, a lower timekeeping voltage, and
an oscillator STOP flag. Block access of the register
map is identical to the ST device. Two additional registers,
which are accessed individually, are required for
the trickle charger and flag. The clock/calendar provides
seconds, minutes, hours, day, date, month, and
year information. A built-in power-sense circuit detects
power failures and automatically switches to the backup
supply. The device is programmed serially through
an I2CTM bidirectional bus.

Features

? Enhanced Second Source for the ST M41T00
? Available in a Surface-Mount Package with an
Integrated Crystal (DS1340C)
? Fast (400kHz) I2C Interface
? Software Clock Calibration
? RTC Counts Seconds, Minutes, Hours, Day, Date,
Month, and Year
? Automatic Power-Fail Detect and Switch Circuitry
? Trickle-Charge Capability
? Low Timekeeping Voltage Down to 1.3V
? Three Operating Voltage Ranges (1.8V, 3V, and 3.3V)
? Oscillator Stop Flag
? Available in 8-Pin μSOP or SO Packages
? Underwriters Laboratory (UL) Recognized

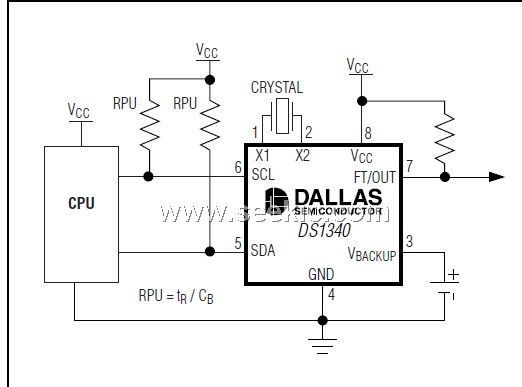

Diagrams
