DG884DN

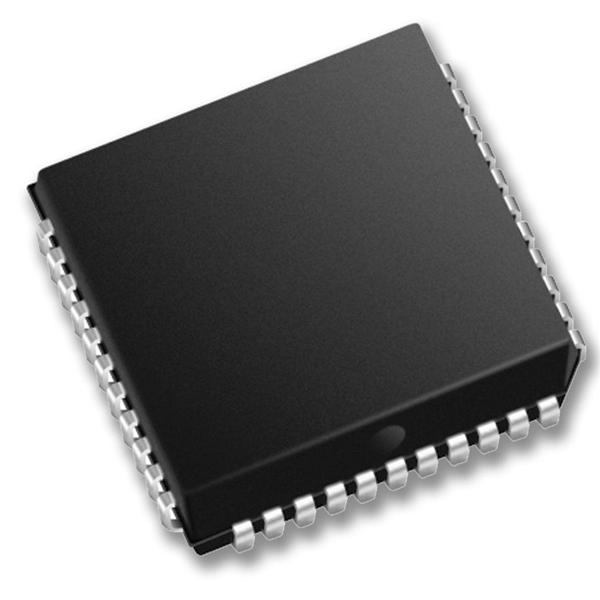

DG884DN, 8 × 4 Wideband Video Crosspoint Array, -0.3 V to 21 V, 20 mA, PLCC, Vishay Telefunken

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	15.00 / Piece
101 ~ 1000 :	12.00 / Piece
1001 ~ 10000 :	10.00 / Piece

PartNumber:: DG884DN

Brand:: Vishay Telefunken - Vishay | Pack: PLCC | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-11-01

From Other Seller

Part Number:DG884DN
US $10.00 - 15.00
Quantity:

piece

Product Summary

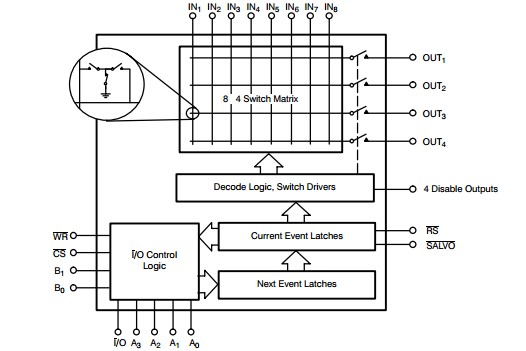

The DG884DN is an 8 × 4 Wideband Video Crosspoint Array. The DG884DN contains a matrix of 32 T-switches configured in an 8 × 4 crosspoint array. Any of the IN/OUT pins of the DG884DN may be used as an input or output. Any of the IN pins of the DG884DN may be switched to any or simultaneously to all OUT pins. The DG884DN is built on a proprietary D/CMOS process that combines low capacitance switching DMOS FETs with low power CMOS control logic and drivers. The applications of the DG884DN include Wideband Signal Routing and Multiplexing, High-End Video Systems, NTSC, PAL, SECAM Switchers, Digital Video Routing, ATE Systems.

Parametrics

DG884DN absolute maximum ratings: (1)V+ to GND: -0.3 V to 21 V; (2)V+ to V-: -0.3 V to 21 V; (3)V- to GND: -10 V to 0.3 V; (4)VL to GND: 0 V to (V+) + 0.3 V; (5)Digital Inputs: -0.3 V to (VL) + 0.3 V or 20 mA, whichever occurs first; (6)VS, VD: -0.3 V to (V-) + 14 V or 20 mA, whichever occurs first; (7)CURRENT (any terminal) Continuous: 20 mA; (8)CURRENT (S or D) Pulsed 1 ms 10% duty: 40 mA; (9)Storage Temperature (A Suffix): -65 to 150 ℃; (10)Operating Temperature (A Suffix): -55 to 125 ℃; (11)Power Dissipation (Package)a 44-Pin Quad J Lead PLCCb: 450 mW; (12)44-Pin Quad J Lead Hermetic CLCCc: 1200 mW.

Features

DG884DN features: (1)Routes Any Input to Any Output; (2)Wide Bandwidth: 300 MHz; (3)Low Crosstalk: -85 dB @ 5 MHz; (4)Double Buffered TTL-Compatible Latches with Readback; (5)Low rDS(on): 45 Ω; (6)Optional Negative Supply; (7)Reduced Board Space; (8)Improved System Bandwidth; (9)Improved Channel Off-Isolation; (10)Simplified Logic Interfacing; (11)Allows Bipolar Signal Swings; (12)Reduced Insertion Loss; (13)High Reliability.
