Product Summary

The DB05B is a range of SMD delay lines suitable for automatic placement and reflow, and so do not add the excessive production costs associated with through hole devices. The DB05B is designed to delay video bandwidth signal with minimal distortion. The equalised lines allow small delay differences between signals to be matched and give excellent response to pulse and bar test signals. The DB05B may also be cascaded to give wider ranges of delay times.

Features

DB05B features: (1)Surface mount compatible; (2)Small size, low cost; (3)Video performance; (4)50, 75 or 200 ohms.

Diagrams

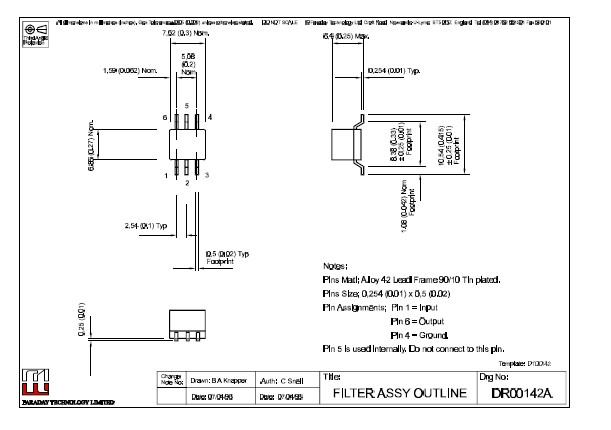

DB05B pin connection
