Product Summary
The ATMEGA16A-PUR is a low-power CMOS 8-bit microcontroller. The ATMEGA16A-PUR is based on the AVR enhanced RISC archi tecture. By execut ing power fu l inst ructions in a sing le clock cycle , the ATMEGA16A-PUR achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATMEGA16A-PUR absolute maximum ratings: (1)Maximum Clock Frequency: 16MHz; (2)Program Memory Size: 16 KB; (3)Data RAM Size: 1 KB; (4)On-Chip ADC:Yes; (5)Package / Case: PDIP-40; (6)Mounting Style: Through Hole; (7)Data ROM Size: 512 B; (8)Interface Type: 2-Wire, SPI, USART; (9)Maximum Operating Temperature:- 40 to + 85℃; (10)Number of Programmable I/Os: 32; (11)Number of Timers: 3; (12)Packaging: Tube; (13)Program Memory Type: Flash; (14)Factory Pack Quantity: 10; (15)Supply Voltage - Max: 5.5V; (16)Supply Voltage - Min: 2.7V.
Features
ATMEGA16A-PUR features: (1)High-performance, Low-power AVR 8-bit Microcontroller; (2)Advanced RISC Architecture; (3)High Endurance Non-volatile Memory segments; (4)JTAG (IEEE std. 1149.1 Compliant) Interface; (5)Power-on Reset and Programmable Brown-out Detection; (6)Internal Calibrated RC Oscillator; (7)External and Internal Interrupt Sources; (8)Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby; (9)0 - 16 MHz for ATmega16A; (10)Power Consumption @ 1 MHz, 3V, and 25℃ for ATmega16A.

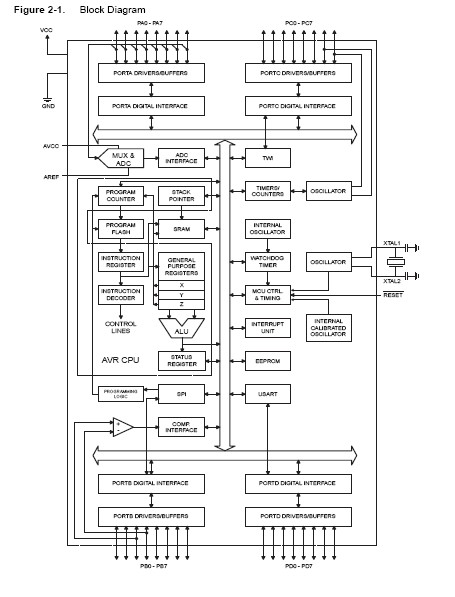

Diagrams
