Product Summary
The amc7135pkf is a low dropout current regulator rated for 350mA constant sink current. The low quiescen current and low dropout voltage of the amc7135pkf is achieved by advanced Bi-CMOS process. Application of the amc7135pkf includes Power LED driver.
Parametrics
amc7135pkf absolute maximum ratings: (1) Input Voltage, VDD: -0.3 to 7V; (2) Output Voltage, VOUT: -0.3 to 7V; (3) Maximum Junction Temperature, TJ: 150°C; (4) Storage Temperature Range: -40 to +150°C; (5) Lead Temperature (Soldering, 10 seconds) : 260°C.
Features
amc7135pkf features: (1) 350mA constant sink current; (2) Output short / open circuit protection; (3) Low dropout voltage; (4) Low quiescent current; (5) Supply voltage range 2.7V ~ 6V; (6) 2KV HBM ESD protection; (7) Advanced Bi-CMOS process; (8) SOT-89 and TO-252 package.

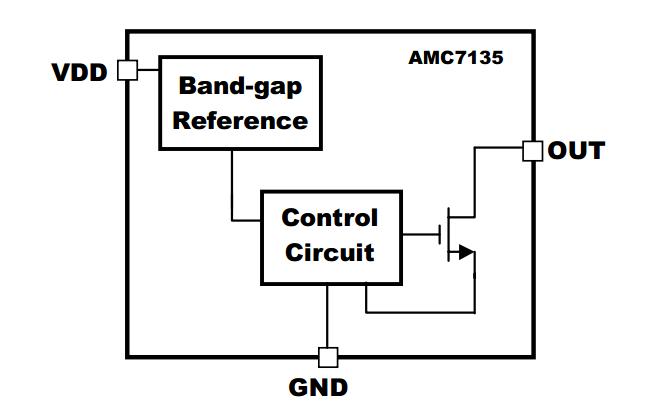

Diagrams
