Product Summary

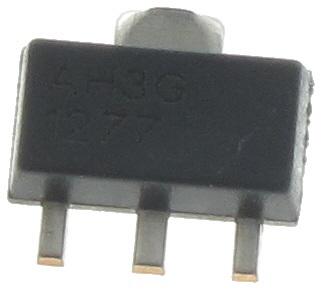

The AH3-G is a high dynamic range amplifier in a low-cost surface-mount package. The combination of low noise figure and high output IP3 at the same bias point makes it ideal for receiver and transmitter applications. The applications of the AH3-G are Mobile Infrastructure, CATV / DBS, RFID, Mobile Wireless.
Parametrics
AH3-G absolute maximum ratings: (1)Operating Case Temperature: -40 to +85 °C; (2)Storage Temperature: -55 to +125 °C; (3)Supply Voltage: +6 V; (4)RF Input Power (continuous): +10 dBm; (5)Junction Temperature: +220 °C.
Features
AH3-G features: (1)50 to 870 MHz; (2)+41 dBm OIP3; (3)3 dB Noise Figure; (4)13 dB Gain; (5)+20 dBm P1dB; (6)Lead-free/Green/RoHS-compliant SOT-89 Package; (7)Single +5 V Supply; (8)MTTF > 100 years.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AH3-G |
TriQuint Semiconductor |
RF Amplifier 50-870MHz 13dB Gain |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
AH3-G |
TriQuint Semiconductor |
RF Amplifier 50-870MHz 13dB Gain |
Data Sheet |
|
|
||||||||||||
