Product Summary

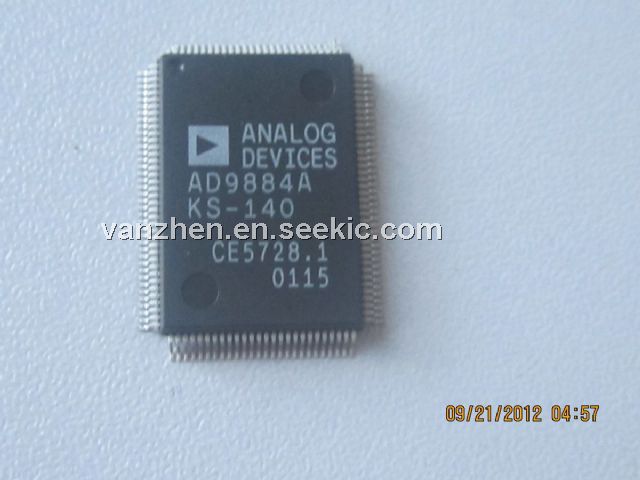

The AD9884AKS-140 is an Analog Flat Panel Interface. The AD9884AKS-140 is a complete 8-bit 140 MSPS monolithic analog interface optimized for capturing RGB graphics signals from personal computers and workstations. Its 140 MSPS encode rate capability and full-power analog bandwidth of 500 MHz supports display resolutions of up to 1280 x 1024 (SXGA) at 75 Hz with sufficient input bandwidth to accurately acquire and digitize each pixel. To minimize system cost and power dissipation, the AD9884AKS-140 includes an internal +1.25 V reference, PLL to generate a pixel clock from HSYNC, and programmable gain, offset and clamp circuits. The user provides only a +3.3 V power supply, analog input, and HSYNC signals. Three-state CMOS outputs may be powered by a supply between 2.5 V and 3.3 V.
Parametrics
AD9884AKS-140 absolute maximum ratings: (1)VD, PVD : –0.5 V to +4 V; (2)PVD to VD : ±0.5 V; (3)VDD : –0.5 V to +4 V; (4)Analog Inputs : VD to –0.5 V; (5)REFIN : VD to 0.0 V; (6)Digital Inputs : VD to 0.0 V; (7)Digital Output Current : 20 mA; (8)Operating Temperature : –20℃ to +85℃; (9)Storage Temperature : –65℃ to +150℃; (10)Maximum Junction Temperature : +175℃; (11)Maximum Case Temperature : +150℃.
Features
AD9884AKS-140 features: (1)140 MSPS Maximum Conversion Rate; (2)500 MHz Analog Bandwidth; (3)0.5 V to 1.0 V Analog Input Range; (4)400 ps p-p PLL Clock Jitter; (5)Power-Down Mode; (6)3.3 V Power Supply; (7)2.5 V to 3.3 V Three-State CMOS Outputs; (8)Demultiplexed Output Ports; (9)Data Clock Output Provided; (10)Low Power: 570 mW Typical; (11)Internal PLL Generates CLOCK from HSYNC; (12)Serial Port Interface; (13)Fully Programmable.

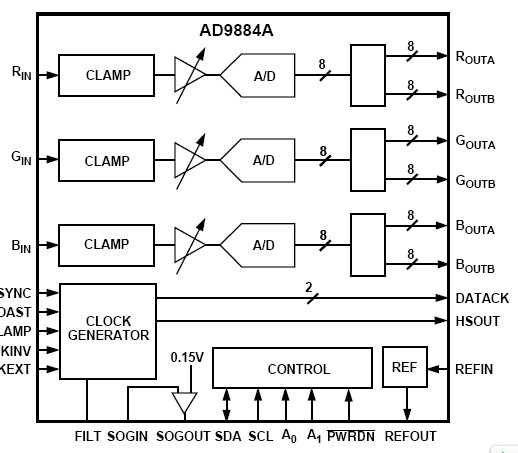

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD9884AKS-140 |
Analog Devices Inc |
IC ANALOG INTRFC 140MSPS 128MQFP |
Data Sheet |
Negotiable |
|
||||
