Product Summary

The AD8042ARZ is a low power voltage feedback, high speed amplifier designed to operate on +3 V, +5 V, or ±5 V supplies. It has true single supply capability with an input voltage range extending 200 mV below the negative rail and within 1 V of the positive rail. The applications of the AD8042ARZ include Video Switchers, Distribution Amplifiers, A/D Driver, Professional Cameras, CCD Imaging Systems, Ultrasound Equipment (Multichannel).

Parametrics

AD8042ARZ absolute maximum ratings: (1)Supply Voltage: 12.6 V; (2)Internal Power Dissipation: 1.3 W; (3)Small Outline Package (R): 0.9 W; (4)Input Voltage (Common Mode): ±VS ± 0.5 V; (5)Differential Input Voltage: ±3.4 V; (6)Storage Temperature Range: –65 to +125℃; (7)Lead Temperature Range (Soldering 10 sec): 300℃.

Features

AD8042ARZ features: (1)Single AD8041 and Quad AD8044 also Available; (2)Fully Specified at +3 V, +5 V, and 5 V Supplies; (3)Output Swings to Within 30 mV of Either Rail; (4)Input Voltage Range Extends 200 mV Below Ground; (5)No Phase Reversal with Inputs 0.5 V Beyond Supplies; (6)Low Power of 5.2 mA per Amplifier; (7)High Speed and Fast Settling on 5 V: 160 MHz –3 dB Bandwidth (G = +1); 200 V/s Slew Rate; 39 ns Settling Time to 0.1%; (8)Good Video Specifications (RL = 150 , G = +2); (9)Gain Flatness of 0.1 dB to 14 MHz: 0.02% Differential Gain Error; 0.04 Differential Phase Error; (10)Low Distortion: 64 dBc Worst Harmonic @ 10 MHz; (11)Drives 50 mA 0.5 V from Supply Rails.

Diagrams

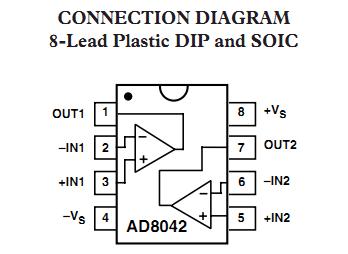

AD8042ARZ connection diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD8042ARZ
AD8042ARZ


IC OPAMP VF R-R DUAL LP 8SOIC

Data Sheet

0-1: $3.52
1-10: $3.15
10-100: $2.58
100-250: $2.33
250-500: $2.09
500-1000: $1.76
1000-2500: $1.68
AD8042ARZ-REEL
AD8042ARZ-REEL


IC OPAMP VF R-R DUAL LP 8SOIC

Data Sheet

0-2500: $1.68
AD8042ARZ-REEL7
AD8042ARZ-REEL7


IC OPAMP VF R-R DUAL LP 8SOIC

Data Sheet

0-1000: $1.76
