Product Summary
The 74HC595PW is a high-speed Si-gate CMOS device and are pin compatible with low power Schottky TTL (LSTTL). is specified in compliance with JEDECstandard no. 7A. Applications of the include: Serial-to-parallel data conversion and Remote control holding register.
Parametrics
74HC595PW absolute maximum ratings: (1) supply voltage Vcc: 2 to 6V; (2) input voltage VI: 0 to Vcc; (3) output voltage Vo: 0 to Vcc; (4) ambient temperature Tamb: -40 to 125° C ; (5) input rise and fall time Tr, tf: 1000ns (Vcc=2V) , 6 to 500ns ( Vcc=4.5V) ; 400ns (Vcc=6.0V) .
Features
74HC595PW features: (1) 8-bit serial input; (2) 8-bit serial or parallel output; (3) Storage register with 3-state outputs; (4) Shift register with direct clear; (5) 100 MHz (typical) shift out frequency.

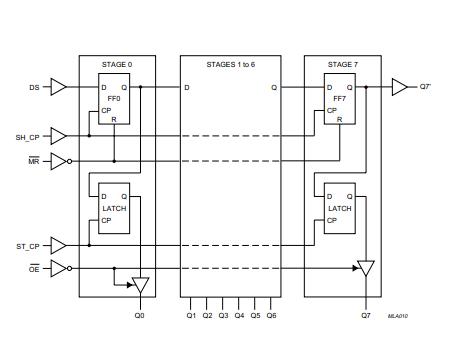

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC595PW,118 |
NXP Semiconductors |
Counter Shift Registers 8BIT SHIFT REGISTER W/OUTPUT LATCH |
Data Sheet |
|
|
||||||||||||
