Product Summary
The 74HC595D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL) . The 74HC595D is specified in compliance with JEDEC standard no. 7A. The 74HC595D is an 8-stage serial shift register with a storage register and 3-state outputs. Applications of the 74HC595D include: Serial-to-parallel data conversion and Remote control holding register.
Parametrics
74HC595D absolute maximum ratings: (1) supply voltage Vcc: -0.5 to +7.0V; (2) input diode current IIK: ±20mA (VI< -0.5 V to VI>VCC+ 0.5 V) ; (3) output diode current IOK: ±20mA (Vo< -0.5V to Vo>VCC+ 0.5V) ; (4) output source or sink current: ±25mA (VO=-0.5V to VCC+ 0.5V, Q7 standard output) , ±35mA (VO=-0.5V to VCC+ 0.5V, Qn bus driver outputs) ; (5) VCC or GND current Icc, IGND: ±70mA; (6) storage temperature Tstg: -65 to +150°C; (7) power dissipation Ptot: 500mW (Tamb= -40 to +125 °C) .
Features
74HC595D features: (1) 8-bit serial input; (2) 8-bit serial or parallel output; (3) Storage register with 3-state outputs; (4) Shift register with direct clear; (5) 100MHz (typical) shift out frequency; (6) ESD protection.

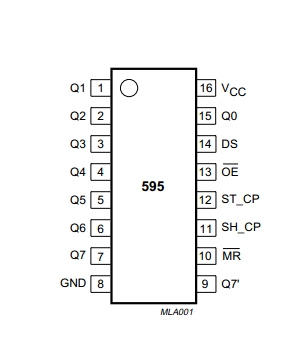

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC595D,118 |
NXP Semiconductors |
Counter Shift Registers 8-BIT SHIFT REG W/OUTPUT LATCH |
Data Sheet |
|
|
||||||||||||
