Product Summary

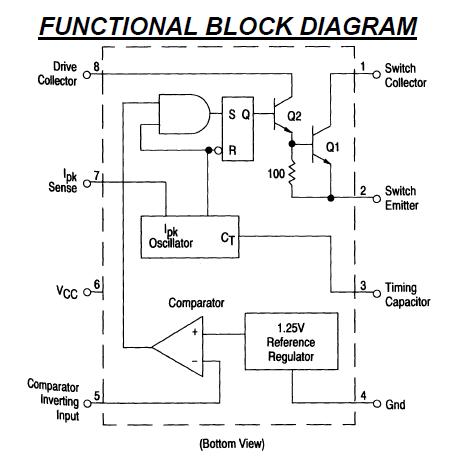

The 34063 is a monolithic control circuit containing the primary functions required for DC-to-DC converters. The 34063 consists of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in Step-Down and Step-Up and Voltage-Inverting applications with a minimum number of external components.
Parametrics
34063 absolute maximum ratings: (1)Power Supply Voltage, VCC: 40 Vdc; (2)Comparator Input Voltage Range, VIR: -0.3 to +40Vdc; (3)Switch Collector Voltage, VC(switch): 40 Vdc; (4)Switch Emitter Voltage (Vpin 1 = 40 V), VE(switch): 40 Vdc; (5)Switch Collector to Emitter Voltage, VCE(switch): 40 Vdc; (6)Driver Collector Voltage, IC(driver): 40 Vdc; (7)Driver Collector Current (Note 1), IC(driver): 100 mA; (8)Switch Current, ISW: 1.5 A.
Features
34063 features: (1)Operation from 3.0 V to 40 V Input; (2)Low Standby Current; (3)Current Limiting; (4)Output Switch Current to 1.5 A; (5)Output Voltage Adjustable; (6)Frequency Operation to 100 kHz; (7)Precision 2% Reference.
