Product Summary

The STPS20L25CT is a dual center tap schottky rectifier. The STPS20L25CT suited to switched mode power supplies and high frequency DC to DC converters. Packaged in TO-220AB and D2PAK, the STPS20L25CT is especially intended for use as a rectifier at the secondary of 3.3V SMPS units.

Parametrics

STPS20L25CT absolute maximum ratings: (1)Repetitive peak reverse voltage: 25 V; (2)RMS forward current: 30 A; (3)Average forward current Tc = 145°C Per diode: 10 A; d = 0.5 Per device: 20 A; (4)Surge non repetitive forward current tp = 10 ms Sinusoidal: 220 A; (5)Repetitive peak reverse current tp=2 ms square F=1kHz: 1 A; (6)Non repetitive peak reverse current tp = 100 ms square: 3 A; (7)Storage temperature range: - 65 to + 150 °C; (8)Maximum operating junction temperature: 150 °C; (9)Critical rate of rise of reverse voltage: 10000 V/ms.

Features

STPS20L25CT features: (1)Very low forward voltage drop for less power dissipation and reduced heatsink; (2)Optimized conduction/reverse losses trade-off which means the highest efficiency in the applications.

Diagrams

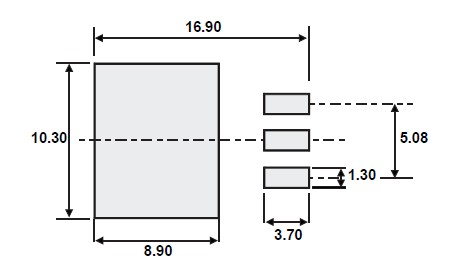

STPS20L25CT pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STPS20L25CT
STPS20L25CT
STMicroelectronics
Schottky (Diodes & Rectifiers) 2X10 Amp 25 Volt
Data Sheet
0-1: $1.06
1-10: $0.92
10-100: $0.82
100-250: $0.75
