L6571AD

L6571AD, half bridge driver, 25 mA, 18 V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: L6571AD

Brand:: STMicroelectronics - ST | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-31

From Other Seller

Part Number:L6571AD
US $0.30 - 0.50
Quantity:

piece

Product Summary

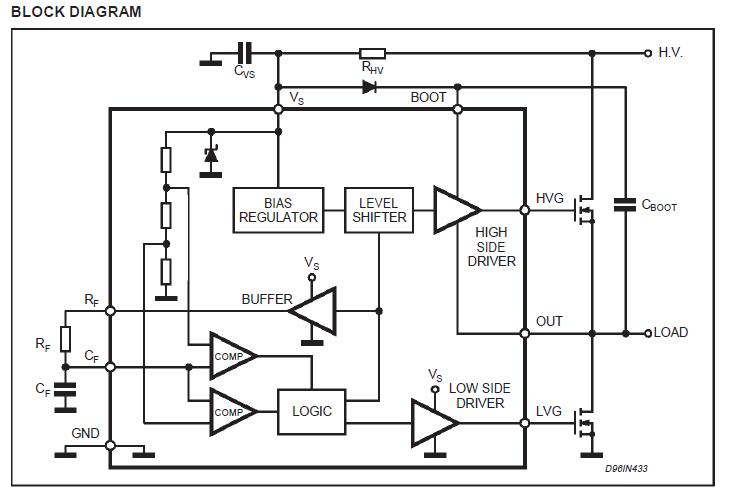

The L6571AD is a high voltage half bridge driver with built-in oscillator. The frequency of the oscillator can be programmed using external resistor and capacitor. The output driver is designed to drive external n-channel power MOSFET and IGBT. The internal logic assures a minimum dead time to avoid cross-conduction of the power devices.

Parametrics

L6571AD absolute maximum ratings: (1)Supply Current, IS: 25 mA; (2)Oscillator Resistor Voltage, VCF: 18 V; (3)Low Side Switch Gate Output, VLVG: 14.6 V; (4)High Side Switch Source Output, VOUT: -1 to VBOOT -18 V; (5)High Side Switch Gate Output, VHVG: -1 to VBOOT V; (6)Floating Supply Voltage, VBOOT: 618 V; (7)Floating Supply vs OUT Voltage, VBOOT/OUT: 18 V; (8)VBOOT Slew Rate (Repetitive), dVBOOT/dt: ±50 V/ns; (9)VOUT Slew Rate (Repetitive), dVOUT/dt: ±50 V/ns; (10)Storage Temperature, Tstg: -40 to 150℃; (11)Junction Temperature, Tj: -40 to 150℃; (12)Ambient Temperature (Operative), Tamb: -40 to 125℃.

Features

L6571AD features: (1)Technology: BCD "off-line"; (2)Floating supply voltage up to 600V; (3)Gnd referred supply voltage up to 18V; (4)Driver current capability: sink current = 270mA; sourcecurrenT = 170mA; (5)Verylow start up current: 150mA; (6)Verylow operating current: <2mA; (7)Undervoltage lockout; (8)Programmable oscillator frequency; (9)dV/dt immunity up to ±50V/ns.
