Product Summary
The BC847AWT1 is a general purpose transistor. It is designed for general purpose amplifier applications. It is housed in the SOT-323/SC-70 which is designed for low power surface mount applications.
Parametrics
BC847AWT1 absolute maximum ratings: (1)Collector-emitter voltage, VCEO: 30Vdc; (2)Collector-base voltage ,VCBO: 30Vdc; (3)Emitter-base voltage, VEBO: 5.0Vdc; (4)Collector current, continuous, IC: 100mAdc.
Features
BC847AWT1 features: (1)Pb-free packages are available; (2)Moisture sensitivity level:1; (3)ESD rating, human body model: >4000V; machine model: >400V.

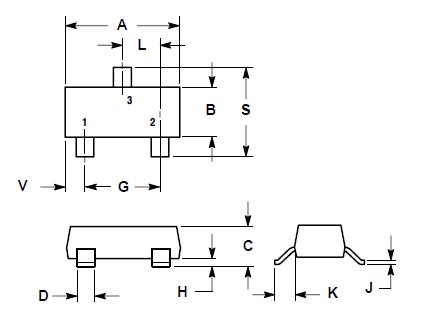

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BC847AWT1 |
ON Semiconductor |
Transistors Bipolar (BJT) 100mA 50V NPN |
Data Sheet |
Negotiable |
|
|||||||||||||
BC847AWT1G |
ON Semiconductor |
Transistors Bipolar (BJT) 100mA 50V NPN |
Data Sheet |
|
|
