AO3416

AO3416, transistor, 20 V, 6.5 A, 1.4 W, SOT

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: AO3416

Brand:: Alpha & Omega Semiconductors - AOS | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-17

From Other Seller

Part Number:AO3416
US $0.30 - 0.50
Quantity:

piece

Product Summary

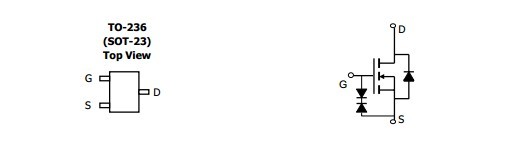

The AO3416 is an n-channel enhancement mode field effect transistor. The AO3416 uses advanced trench technology to provide excellent RDS(ON) , low gate charge and operation with gate voltages as low as 1.8V. This device is suitable for use as a load switch or in PWM application. The AO3416 is ESD protected. The AO3416 is offered in a lead-free package.

Parametrics

AO3416 absolute maximum ratings: (1)Drain-Source Voltage: 20 V:; (2)Continuous Drain Current A Parameter Maximum Units TA=25°C: 6.5 A; (3)Power Dissipation A TA=25°C PD: 1.4 W; (4)Junction and Storage Temperature Range TJ , TSTG: -55 to 150°C; (5)Maximum Junction-to-Lead C Steady-State RθJL: 43 to 60°C/W.

Features

AO3416 features: (1)VDS (V)= 20V; (2)ID = 6.5 A; (3)RDS(ON)< 22mΩ (VGS = 4.5V); (4)RDS(ON)< 26mΩ (VGS = 2.5V); (5)RDS(ON)< 34mΩ (VGS = 1.8V); (6)ESD Rating: 2000V HB.
