AO3414

AO3414, field effect transistor, 20 V, 3.2 A, 1.4 W, SOT

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: AO3414

Brand:: Alpha & Omega Semiconductors - AOS | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-17

From Other Seller

Part Number:AO3414
US $0.30 - 0.50
Quantity:

piece

Product Summary

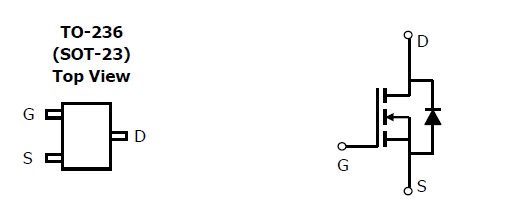

The AO3414 is an N-channel enhancement mode field effect transistor. The AO3414 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 1.8V. This device is suitable for use as a load switch or in PWM applications. Standard product AO3414 is Pb-free (meets ROHS & Sony 259 specifications).

Parametrics

AO3414 absolute maximum ratings: (1)Gate-source voltage: ±8 V; (2)Drain-source voltage: 20 V; (3)Continuous drain current A, TA=25°C: -4.2 A; TA=70°C: 3.2 A; (4)Pulsed drain Current B: 15 A; (5)Power dissipation A, TA=25°C: 1.4 W; TA=70°C: 0.9 W; (6)Junction and storage temperature range: -55 to 150 °C.

Features

AO3414 features: (1)VDS (V)= 20V; (2)ID = 4.2 A (VGS = 4.5V); (3)RDS(ON)< 50mΩ (VGS = 4.5V); (4)RDS(ON)< 63mΩ (VGS = 2.5V); (5)RDS(ON)< 87mΩ (VGS = 1.8V).
