Product Summary
The EVND2AA03B53 is a 6FE square trimmer potentiometer.
Parametrics
EVND2AA03B53 absolute maximum ratings: (1)Nominal total resistance: 1 kΩ to 1 MΩ; (2)Residual resistance: 1 kΩ<R<2 kΩ: 60Ω max; (3)Rotation angle: 210 ℃±20 ℃; (4)Rotation torque: 2 mN·m to 25 mN·m; (5)Stopper strength surface: 75 mN·m, reverse side: 35 mN·m; (6)Operating life: 100 cycles; (7)Resistance to soldering heat: 240 ℃ to 280 ℃: 5 s max., 280 ℃ to 300 ℃: 3 s max.; (8)Endurance under high temperature: 70 ℃±3 ℃ after 250 hours +5 %, -15 %.
Features
EVND2AA03B53 features: (1)Top-adjust or side-adjust available; (2)Radial taping supported; (3)High reliability (dustproof construction).

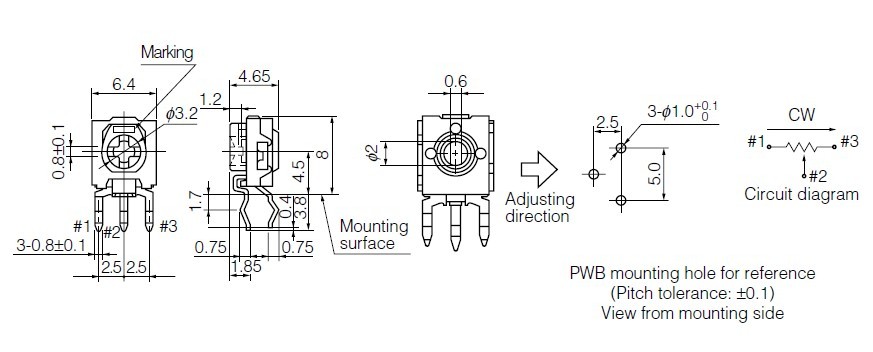

Diagrams
