Product Summary

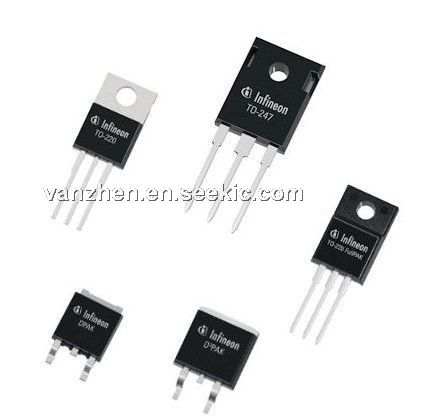

The SKW30N60 is a Fast IGBT in NPT-technology with soft, fast recovery anti-parallel Emitter Controlled Diode.

Parametrics

SKW30N60 absolute maximum ratings: (1)Collector-emitter voltage, VCE: 1200V; (2)DC collector current, IC: 46A at TC =25°C; 25A at TC =100°C; (3)Pulsed collector current, tp limitedby Tjmax, ICpuls: 84A; (4)Turn off safe operating area, VCE ≤ 1200V, Tj≤ 150°C: 84A; (5)Diode forward current, IF: 42A at TC =25°C; 25A at TC =100°C; (6)Diode pulsed current, tp limitedby Tjmax IFpuls: 80A; (7)Gate-emitter voltage VGE: ±20 V; (8)Short circuit with standtime, VGE =15V,100V≤VCC ≤1200V, Tj≤150°C, tSC: 10 us; (9)Power dissipation, TC =25°C, Ptot: 313W; (10)Operating junction and storage temperature Tj, Tstg -55 to +150 °C; (11)Soldering temperature, wave soldering,1.6mm(0.063in. from case for 10s, Ts :260°C.

Features

SKW30N60 features: (1)40lower Eoff compared to previous generation; (2)Short circuit withstand time–10us; (3)Designed for: Motor controls; Inverter; SMPS; (4)NPT-Technology offers: very tight parameter distribution; hig hruggedness, temperature stable behaviour; parallel switching capability; (5)Pb-free lead plating; RoHS compliant; (6)Qualified according to JEDEC1 for target applications; (7)Completep roduct spectrum and PSpice Models.

Diagrams

SKW30N60 block diagram
