Product Summary

The MIG20J502H is a TOSHIBA intelligent power module. The applications of the MIG20J502H include Inverter air conditioners, PWM carrier frequency 3 kHz.

Parametrics

MIG20J502H absolute maximum ratings: (1)Supply Voltage VCC P-N: 450 V; (2)Supply Voltage (Surge) VCC (surge) P-N: 500 V; (3)Collector Emitter Voltage VCES: 600 V; (4)Collector Current ±IC Tc = 25℃: 20 A; (5)Collector Current (Peak) ±ICP Tc=25℃: 40 A; (6)Collector Power Dissipation PC Tc=25℃: 50 W; (7)Junction Temperature Tj : 150℃.

Features

MIG20J502H features: (1)Maximum Rating: VCES: 600 V, IC: 20 A; (2)High voltage ICx 3 + low voltage IC X 1; (3)5-V system CMOS/correspond to TTL; (4)Single power supply driving bootstrap circuit; (5)Over current protection: only low-side arm; (6)Short circuit protection: high and low-side arms; (7)RTC: high and low-side arms; (8)Over temperature protection: only low-side arm; (9)Power supply under voltage protection: high and low-side arms; (10)Fault signal output: In case of abnormal status of low-side arm.

Diagrams

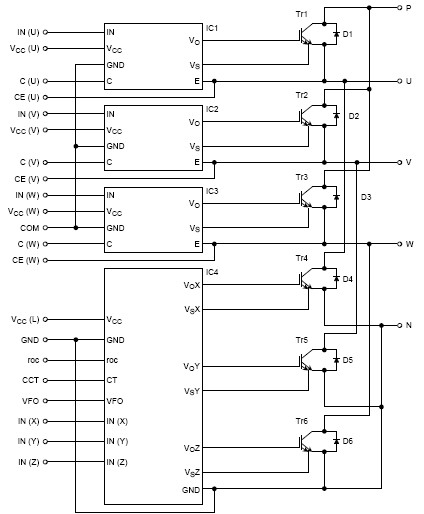

MIG20J502H block diagram
