Product Summary
The CM400HA-24E is an IGBT module. It is designed for use in switching applications. The CM400HA-24E consists of one IGBT in a single configuration with a reverse-connected super-fast recovery free wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM400HA-24E are AC motor control, motion/servo control, UPS, welding power supplies.
Parametrics
CM400HA-24E absolute maximum ratings: (1)Junction temperature: -40℃ to 150℃; (2)Storage temperature: -40℃ to 125℃; (3)Collector-emitter voltage (G-E short): 1200 Volts; (4)Gate-emitter voltage (C-E short): ±20 Volts; (5)Collector current (Tc = 25℃): 400 Amperes; (6)Peak collector current (Tj≤ 150℃): 800 Amperes; (7)Emitter current (Tc = 25℃): 400 Amperes; (8)Peak emitter current: 800 Amperes; (9)Maximum collector dissipation (Tc = 25℃): 2800 Watts; (10)Mounting torque, M6 main terminal: 1.96 to 2.94 N.m; (11)Mounting torque, M6 mounting: 1.96 to 2.94 N.m; (12)Mounting torque, M4 terminal: 0.98 to 1.47 N.m; (13)Weight: 400 Grams; (14)Isolation voltage (main terminal to baseplate, AC 1 min.): 2500 Vrms.
Features
CM400HA-24E features: (1)Low drive power; (2)Low VCE(sat); (3)Discrete super-fast recovery free-wheel diode; (4)High Frequency operation; (5)Isolated baseplate for easy.

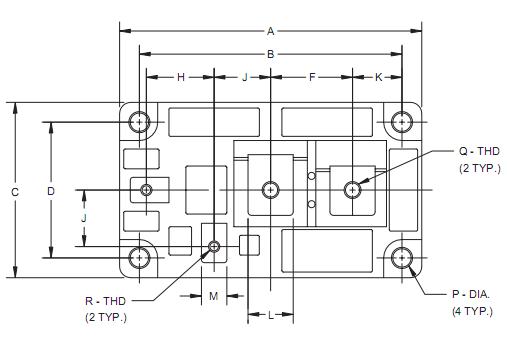

Diagrams
