Product Summary

The BSM15GP120B2 is an IGBT-Module.

Parametrics

BSM15GP120B2 absolute maximum ratings: (1)repetitive peak reverse voltage: 1600 V; (2)RMS forward current per chip: 40A; (3)DC forward current: 15A; (4)surge forward current: 230A; (5)Grenzlastintegral: 450 A2s.

Features

BSM15GP120B2 features: (1)forward voltage: 0.95 to 1V; (2)threshold voltage: 0.8V; (3)slope resistance: 10.5 mΩ; (4)reverse current: 2mA.

Diagrams

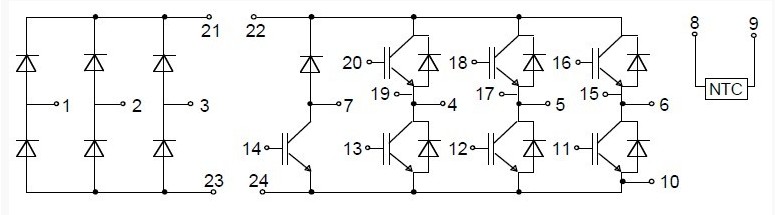

BSM15GP120B2 block diagram
