Product Summary

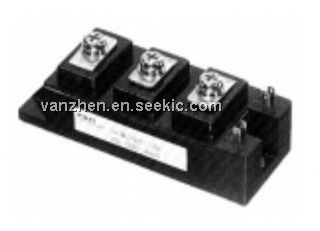

The 2MBI50N-060 is an IGBT power module. Applications ARE (1)High power switching; (2)A.C. motor controls; (3)D.C. motor controls; (4)Uninterruptible power supply.
Parametrics
2MBI50N-060 absolute maximum ratings: (1)Collector-emitter voltage VCES: 600 V; (2)Gate -emitter voltage VGES: ± 20 V; (3)Max, power dissipation PC: 250 W; (4)Operating temperature Tj: +150 ℃; (5)Storage temperature Tstg: -40 to +125 ℃; (6)Isolation voltage A.C. 1min Vis: 2500 V; (7)Collector current continuous IC: 50 A, 1ms IC pulse: 100 A, continuous -IC: 50 A, 1ms -IC pulse: 100 A.
Features
2MBI50N-060 features: (1)Square RBSOA; (2)Low saturation voltage; (3)Less total power dissipation; (4)Improved FWD characteristic; (5)Minimized internal stray inductance; (6)Overcurrent limiting function (~3 times rated current).

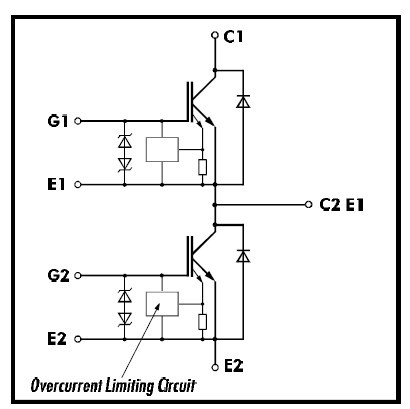

Diagrams
