Product Summary
The 2MBI200N-120 is an IGBT modlue. Applications are (1)High power switching; (2)A.C. motor controls; (3)D.C. motor controls; (4)Uninterruptible power supply.
Parametrics
2MBI200N-120 absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1200 V; (2)Gate -emitter voltage, VGES: ± 20 V; (3)Collector current continuous IC: 200A, 1ms IC pulse: 400A, continuous -Ic: 200A, 1ms -IC pulse: 400A; (4)Max. power dissipation, PC: 1500 W; (5)Operating temperature, Tj: +150℃; (6)Storage temperature, Tstg: -40 to +125℃; (7)isolation voltage AC 1 min Vis: 2500V; (8)screw topque mounting: 3.5N.m, terminals: 4.5N.m.
Features
2MBI200N-120 features: (1)Square RBSOA; (2)Low saturation voltage; (3)Less total power dissipation; (4)Improved FWD characteristic; (5)Minimized internal stray inductance; (6)Overcurrent limiting function (4~5 times rated current).

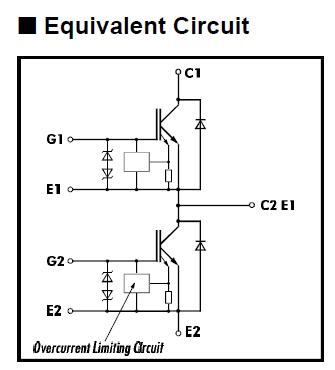

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI200N-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
