Product Summary

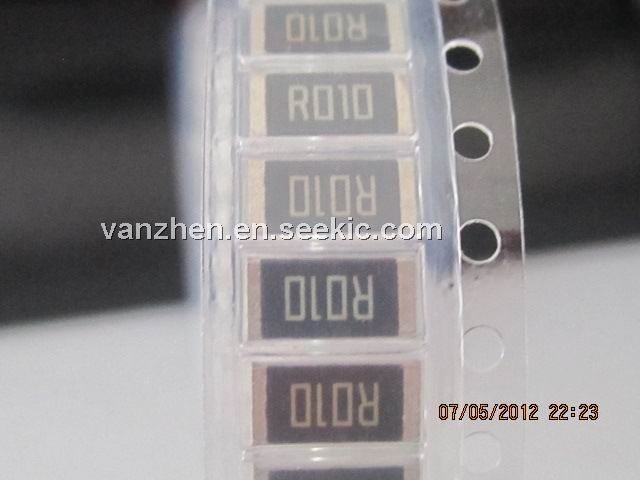

The CRA2512-FZ-R010ELF is a high power current sense chip resistor. Applications are (1)Power supplies; (2)Stepper motor drives.
Parametrics
CRA2512-FZ-R010ELF absolute maximum ratings: (1)Power rating @ 70 °C: 3 W; (2)Operating temperature range: -55 °C to +170 °C; (3)Derated to zero load at: +170 °C; (4)Maximum working voltage: (P x R)1/2; (5)Insulation resistance: > 100 megohms; (6)Resistance range: 0.01 - 0.100 ohms; (7)Resistance tolerance: ±1 %, ±5 %; (8)Temperature coefficient: ±75 PPM/°C.
Features
CRA2512-FZ-R010ELF features: (1)Special alloy resistor; (2)Power rating at 70 °C: 3 W; (3)RoHS compliant.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CRA2512-FZ-R010ELF |
Bourns |
Current Sense Resistors - SMD 0.010ohms 1% +/- 75PPM |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
CRA2010-FZ-R010ELF |
Bourns |
Current Sense Resistors - SMD 0.010ohms 1% +/- 75PPM |
Data Sheet |
|
|
||||||||||||
 |
CRA2010-FZ-R015ELF |
Bourns |
Current Sense Resistors - SMD |
Data Sheet |
Negotiable |
|
||||||||||||
|
CRA2010FZR020ELF |
Bourns |
Current Sense Resistors - SMD 0.020ohms 1% +/- 75PPM |
Data Sheet |
Negotiable |
|
||||||||||||
|
CRA2010-FZ-R020ELF |
Bourns |
Current Sense Resistors - SMD |
Data Sheet |
Negotiable |
|
||||||||||||
|
CRA2010FZR034ELF |
Bourns |
Current Sense Resistors - SMD 0.034ohms 1% +/- 75PPM |
Data Sheet |
Negotiable |
|
||||||||||||
|
CRA2010-JZ-R005ELF |
Bourns |
Current Sense Resistors - SMD CHIP RESISTOR |
Data Sheet |
Negotiable |
|
||||||||||||
