Product Summary
The HFV7A is an automotive relay. The applications are fog lamp&headlight control, rear window defogger, ABS, fuel pump control, air-conditioning, cooling fan control, A/C blower. horn control, heating control, battery disconnection device.
Parametrics
HFV7A absolute maximum ratings: (1)contact arragement: 1A, 1C; (2)max switching current: 50A; (3)max swtiching voltage: 50VDC; (4)min contact load: 1A 6VDC; (5)initial insulation resistance: 100MΩ at 500VDC; (6)dielectric strength: 500VAC.
Features
HFV7A features: (1)50A switching capability; (2)Extended temp. range up to 125℃; (3)With transient suppression resistor available; (4)1 Form A & 1 Form C contact arrangement; (5)Plastic sealed and dust protected types available; (6)RoHS & ELV compliant.

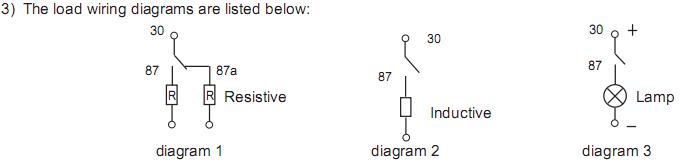

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() HFV7A |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
![]() |
![]() HFV7 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() HFV7A |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
