Product Summary

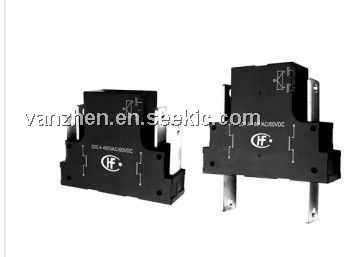

The HFE6 is a high power latching relay.

Parametrics

HFE6 absolute maximum ratings: (1)Contact arrangement: 2 A, 2 B; (2)Contact resistance: Typ.: 0.25 mΩ max; (3)Contact material: AgSnO2; (4)Contact rating: 200 A 277 VAC/28 VDC; (5)Max.switching voltage: 400 VAC; (6)Max.switching current: 200 A; (7)Max.switching power: 55400 VA/5600W; (8)Electrical endurance: 1 × 10 4OPS; (9)Mechanical endurance: 1 × 10 5OPS.

Features

HFE6 features: (1)Latching relay; (2)200 A switching capability; (3)Strong resistance ability to shock & vibration; (4)Heavy load up to 55.4 kVA; (5)4 kV dielectric strength; (6)Typical application: Power, Lamp; (7)Environmental friendly product; (8)Outline Dimensions: (100.0 × 80.0 × 29.8) mm.

Diagrams

HFE6 block diagram
