Product Summary

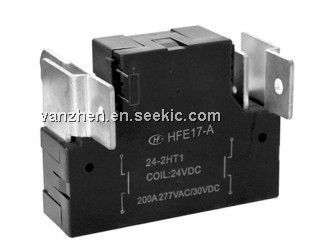

The HFE17 is a high power latching relay.
Parametrics
HFE17 absolute maximum ratings: (1)insulation resistance: 1000MΩ at 500VDC; (2)operate time: 20ms max; (3)release time: 20ms max; (4)vibration resistance: 10 to 55Hz 1.5mm DA; (5)humidity: 5 to 85% RH; (6)ambient temperature: -40 to 85°C.
Features
HFE17 features: (1)Latching relay; (2)200A switching capability; (3)According to ANSI C 12.1 (Carrying: 12kA current/66.7ms; 7kA peak current/100ms ); (4)Switching power up to 55.4kVA; (5)4kV dielectric strength (between coil and contacts); (6)Environmental friendly product (RoHS compliant); (7)Outline Dimensions: (97.6 x 73.2 x 29.5) mm.

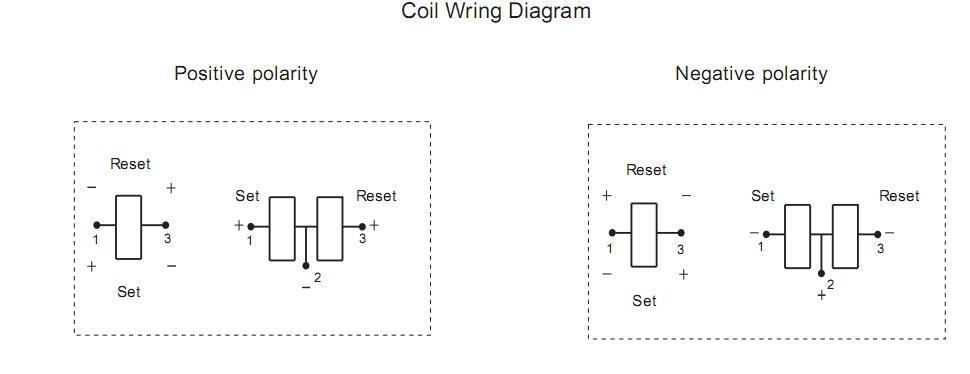

Diagrams
