Product Summary

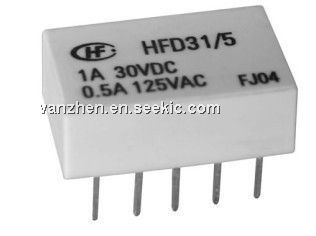

The HFD31 is a subminiature signal relay.

Parametrics

HFD31 absolute maximum ratings: (1)contact arrangement: 2C; (2)contact resistance: 10mΩ max at 0.1A 6VDC; (3)contact rating: 1A 30VDC; (4)max switching current: 2A; (5)max switching voltage: 125VAC/110VDC; (6)max switching power: 62.5VA/30W; (7)min applicable load: 10mV/10uA.

Features

HFD31 features: (1)Offers excellent board space savings; (2)Surge withstand voltage up to 1500V, meets FCC Part 68; (3)High contact capacity 1A 30VDC; (4)Low power consumption; (5)Single side stable and latching type available; (6)Single or double coil winding type available; (7)Environmental friendly product (RoHS compliant); (8)Outline Dimensions: (14.0 x 9.0 x 5.0) mm.

Diagrams

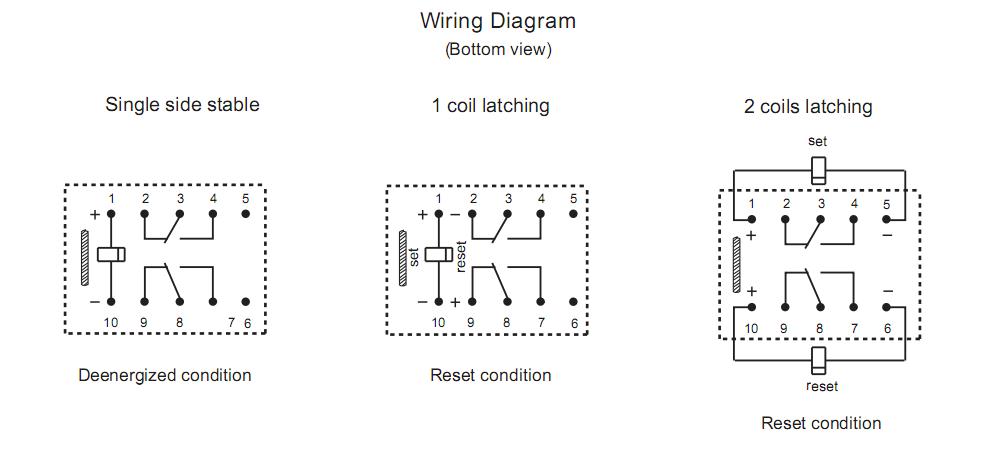

HFD31 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HFD31
HFD31
Other

Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HFD3
HFD3
Other

Data Sheet
Negotiable
