Product Summary

The HF3FF is a Subminiature high power relay.

Parametrics

HF3FF absolute maximum ratings: (1)Contact arrangement: 1A; (2)Contact resistance: 100mΩ(at 1A 6VDC); (3)Contact rating: 10A 277VAC/28VDC; (4)Max. switching voltage: 277VAC/30VDC; (5)Max. switching current: 15A; (6)Max. switching power: 2770VA/210W.

Features

HF3FF features: (1)15A switching capability; (2)Extremely low cost; (3)1 From A and 1 From C configurations; (4)Subminiature, standard PCB layout; (5)Wash tight and flux proofed types available; (6)Environmental friendly product (RoHS compliant); (7)Outline Dimensions: (19.0 x 15.2 x 15.5) mm.

Diagrams

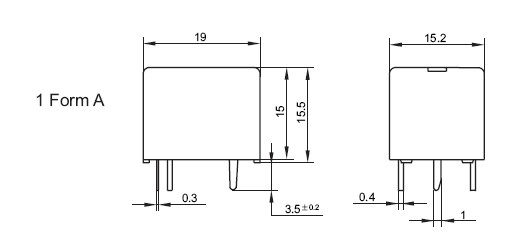

HF3FF dimension
