Product Summary

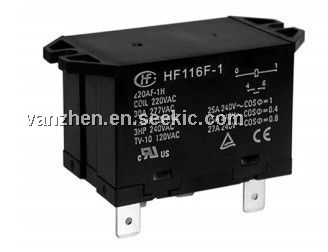

The HF116F-1 is a miniature high power relay.

Parametrics

HF116F-1 absolute maximum ratings: (1)insulation resistance: 1000MΩ(at 500VDC); (2)operate time: 30ms.max; (3)release time: 30ms.max; (4)shock resistance: 100m/s(2); (5)ambient temperature:-55 to 70°C.

Features

HF116F-1 features: (1)30A switching capability; (2)4kv dieletric strength; (3)heavy load up to 7500VA; (4)class F insulation avalaiable; (5)3mm contact gap avalaiable; (6)environmental friendly product; (7)outline dimensions 50.5×33.5×36.0mm.

Diagrams

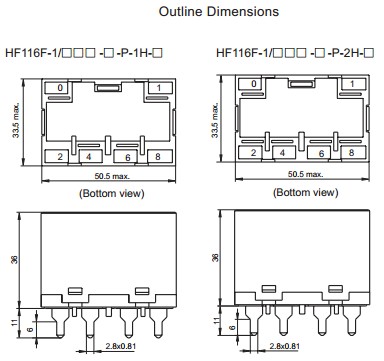

HF116F-1 outline dimension
