Product Summary

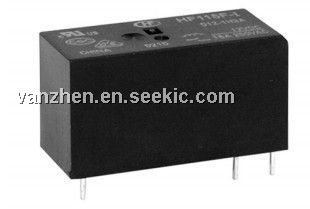

The HF115F-I is a miniature high power relay.
Parametrics
HF115F-I absolute maximum ratings: (1)Max. switching voltage: 440VAC/125VDC; (2)Max. switching current: 8A; (3)Max. switching power: 3000VAC/4000VA; (4)Contact arrangement: 2A, 2B, 2C; (5)Ambient temperature: -40 to 85℃.
Features
HF115F-I features: (1)Low height: 15.7 mm; (2)16A switching capability; (3)5kV dielectric strength (between coil and contacts); (4)Creepage distance: 10mm; (5)Meeting VDE 0700, 0631 reinforce insulation; (6)Product in accordance to IEC 60335-1 available; (7)Sockets available; (8)Plastic sealed and flux proofed types available; (9)UL insulation system: Class F available; (10)Environmental friendly product; (11)Outline Dimensions: (29.0 x 12.7 x 15.7) mm.

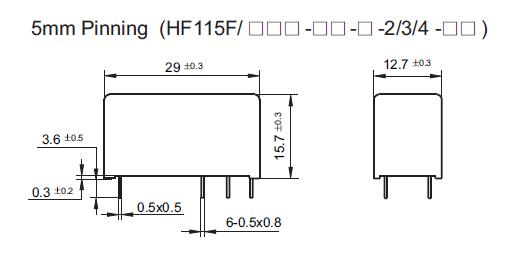

Diagrams
